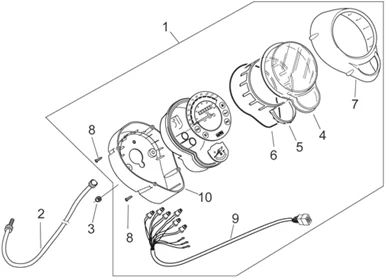

Chassis : 28.17 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/255/Mojito_125_E3_2008_28.17.PNG)
1 |
AP8127537 - CRUSCOTTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/4/1/img/71341.jpg)
2 |
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" 50-125 MOJITO -AP8114472- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
3 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 3 |
||||||
|
4 |
AP8224231 - VITRE TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
5 |
AP8224232 - ECRAN DIFFUSEUR More informationQuantity required : 1 |
||||||
|
6 |
AP8220555 - JOINT More informationQuantity required : 1 |
||||||
|
7 |
AP8224240 - CADRE CHROME More informationQuantity required : 1 |
||||||
|
9 |
AP8124921 - CABLAGE AVEC LAMPES; More informationQuantity required : 1 |
||||||
|
10 |
AP8249265 - COQUE INFERIEURE; More informationQuantity required : 1 |
