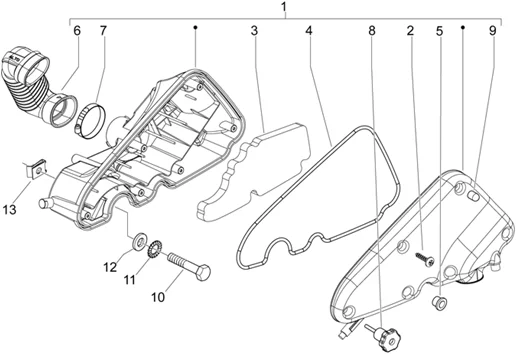

Chassis : 28.21 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/255/Mojito_125_E3_2008_28.21.PNG)
1 |
878184 - BOITE FILTRE AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
2 |
SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/0/7/3/img/157073.jpg)
3 |
AIR FILTER"PIAGGIO GENUINE PART" PREMIUM 125 FLY 2005>, LIBERTY, X8-STREET 2006>, VESPA LX, 50 FLY 4 STROKE, VESPA LX 4 STROKE/APRILIA 125 MOJITO 2008>, SPORT-CITY, SR-MAX 2012> -8431940P- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/6/6/img/69266.jpg)
4 |
843195 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/8/img/68888.jpg)
5 |
830056 - BAGUE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/0/1/img/69301.jpg)
6 |
AIR CALIBRATION TUBE "PIAGGIO GENUINE PARTS" TYPHOON 50 4 STROKE 2012>2017, FLY 50-125 4 STROKE 2012>2013, LIBERTY 125 2009>2012, X8 125 STREET 2006>2007/ VESPA S 50-125 4 STROKE 2008>2014 -843849- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/5/img/72895.jpg)
7 |
COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 125-250-300 -CM002910- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/3/img/66573.jpg)
8 |
479132 - BOUTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/1/img/68701.jpg)
9 |
CAP - FOR AIRBOX "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER / MAXISCOOTER 4 STROKE -827831- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/8/img/65448.jpg)
10 |
SCREW - (6X50 AIR FILTER FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -018640- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
11 |
012533 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
12 |
003056 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
13 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
