Vehicle Exploded View - MOTO-GUZZI GRISO 850 Griso V IE 850 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

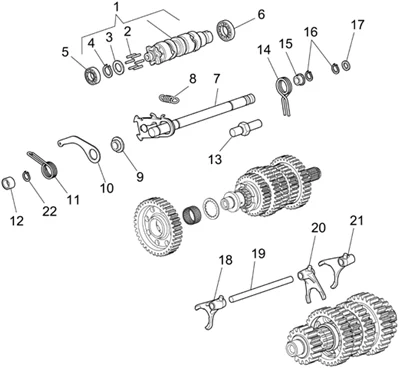

Moteur : 34.50 SELECTEUR BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/491/Griso_V_IE_850_2006-2007_34.50.PNG)
1 |
GU05234431 - DESMODROMIQUE CPL. More informationQuantity required : 1 |
|||||||||
|
2 |
GU05234631 - VIS More informationQuantity required : 6 |
|||||||||
|
3 |
GU05235531 - CALE More informationQuantity required : 1 |
|||||||||
|
4 |
GU90271022 - BAGUE SEEGER More informationQuantity required : 1 |
|||||||||
|
5 |
GU92201117 - ROULEMENT A BILLES 17X35X10 More informationQuantity required : 1 |
|||||||||
|
6 |
GU92201025 - ROULEMENT A BILLES 25X42X9 More informationQuantity required : 1 |
|||||||||
|
7 |
2A000943- PRESELECTEUR COMPLET More informationQuantity required : 1 |
|||||||||
|
7 |
GU05236231 - PRESELECTEUR COMPLET More informationQuantity required : 1 |
|||||||||
|
8 |
GU05238231 - RESSORT More informationQuantity required : 1 |
|||||||||
|
9 |
GU05238431 - BAGUE More informationQuantity required : 1 |
|||||||||
|
10 |
GU05234731 - LEVIER INDEX More informationQuantity required : 1 |
|||||||||
|
11 |
GU05234130 - RESSORT More informationQuantity required : 1 |
|||||||||
|
12 |
GU05234230 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
|
13 |
GU05234931 - PIVOT FIXATION More informationQuantity required : 1 |
|||||||||
|
14 |
887028 - MOLLA RICHIAMO PRESELETTORE More informationQuantity required : 1 |
|||||||||
|
15 |
GU05238131 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
|
16 |
GU90271014 - BAGUE SEEGER More informationQuantity required : 2 |
|||||||||
|
17 |
GU05239330 - BUTEE More informationQuantity required : 1 |
|||||||||
|
18 |
GU05230531 - FOURCHETTE 1A-3A More informationQuantity required : 1 |
|||||||||
|
19 |
GU05232431 - AXE DE FOURCHETTE More informationQuantity required : 1 |
|||||||||
|
20 |
GU05232631 - FOURCHETTE 5A-6A More informationQuantity required : 1 |
|||||||||
|
21 |
GU05230831 - FOURCHETTE 2A-4A More informationQuantity required : 1 |
|||||||||
|
22 |
GU90353014 - VIS More informationQuantity required : 1 |
|||||||||
