Vehicle Exploded View - MOTO-GUZZI GRISO 850 Griso V IE 850 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

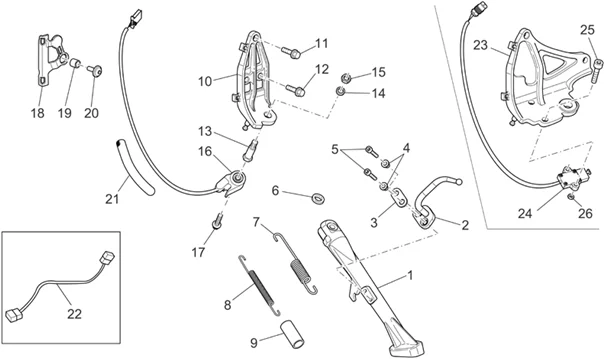

Chassis : 33.02 BÉQUILLE LATÉRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/491/Griso_V_IE_850_2006-2007_33.02.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/9/8/6/img/99986.jpg)
1 |
SIDE STAND "PIAGGIO GENUINE PART" MOTO-GUZZI 850-1100-1200 GRISO -977067- More informationQuantity required : 1 |
||||||
1 |
GU06432100 - BEQUILLE LATERALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/4/6/img/126146.jpg)
2 |
SIDE STAND LEVER "PIAGGIO GENUINE PART" MOTO-GUZZI 850-1100-1200 GRISO -GU06431900- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/9/7/8/img/128978.jpg)
3 |
GU06431700 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
4 |
AP8121795 - DOUILLE EN T More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
5 |
GU98682316 - VIS M6X16 More informationQuantity required : 2 |
||||||
|
6 |
GU95005324 - RONDELLE 12,5X23X1,5 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/6/img/71426.jpg)
7 |
RETURN SPRING FOR STAND (SMALL) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8121014- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/2/img/72302.jpg)
8 |
AP8221197 - RESSORT RAPPEL BEQ. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/5/img/71185.jpg)
9 |
SIDE STAND SPRING COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -AP8102524- More informationQuantity required : 1 |
||||||
|
10 |
GU06433500 - PLAQUE BEQUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/6/img/71986.jpg)
11 |
AP8152473 - VITE TE M10 X 25 FLANGIATA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
12 |
AP8152287 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/6/img/71476.jpg)
13 |
SCREW - FOR SIDE STAND "PIAGGIO GENUINE PART" MOTO-GUZZI GRISO, NEVADA, NORGE, STELVIO -AP8121607- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.JPG)
14 |
AP8150292 - RONDELLE ELASTIQUE COURBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/7/img/71907.jpg)
15 |
NUT - FOR SIDE STAND (10X1,25) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA /MOTO-GUZZI -AP8152001- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/8/8/img/69688.jpg)
16 |
STAND SWITCH "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2/MOTO-GUZZI 850-1100 BREVA, GRISO -854889- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/1/img/68461.jpg)
17 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE-GUZZI -672380- More informationQuantity required : 1 |
||||||
|
18 |
GU06759300 - PASSE-CABLE More informationQuantity required : 1 |
||||||
|
19 |
AP8221225 - DOUILLE FIXAT.RETROVIS. More informationQuantity required : 1 |
||||||
|
20 |
GU98371020 - VIS M10X20 More informationQuantity required : 1 |
||||||
|
21 |
GU00823923140 - GUAINA NERA D16 S0,4 VETR More informationQuantity required : 1 |
||||||
|
22 |
977292 - ADATTATORE INT. CAVAL 1100 More informationQuantity required : 1 |
||||||
|
22 |
977571 - ADATTATORE INT. CAVAL 1100 ABS More informationQuantity required : 1 |
||||||
|
23 |
977065 - PIASTRA CAVALLETTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/3/7/img/67837.jpg)
24 |
SIDE STAND SWITCH "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -639542- More informationQuantity required : 1 |
||||||
|
25 |
GU98612220 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
26 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
