Vehicle Exploded View - MOTO-GUZZI GRISO 850 Griso V IE 850 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

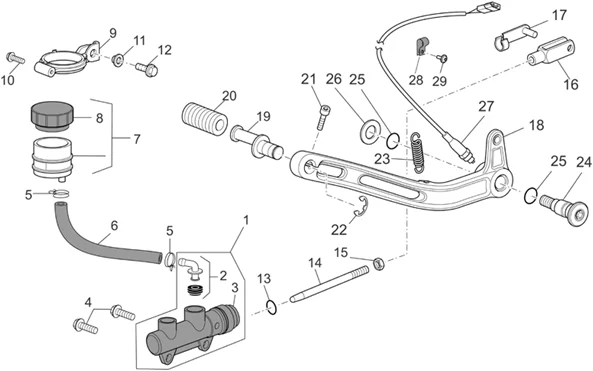

Chassis : 33.32 MAÎT.CYL. FREIN AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/491/Griso_V_IE_850_2006-2007_33.32.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/8/7/4/img/128874.JPG)
1 |
GU05666930 - MAIT.CYL.FREIN AR More informationQuantity required : 1 |
||||||
2 |
AP8113594 - RACCORD POMPE ARRIERE More informationQuantity required : 1 |
||||||
|
3 |
AP8113288 - SOUFFLET EN CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
4 |
AP8152279 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
5 |
AP8101595 - COLLIER More informationQuantity required : 2 |
||||||
|
6 |
GU00823950050 - T GOMMA 5X9 More informationQuantity required : 1 |
||||||
|
7 |
GU05663530 - RESERV.HUILE FREINS More informationQuantity required : 1 |
||||||
|
8 |
GU17661052 - BOUCHON RESERVOIR More informationQuantity required : 1 |
||||||
|
9 |
GU05666030 - SUPPORT RESERVOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
10 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 1 |
||||||
|
11 |
AP8221145 - "DOUILLE EN ""T"" *" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
12 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/7/img/71387.JPG)
13 |
AP8120178 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
14 |
977041 - ASTA NUDA POMPA FRENO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
15 |
AP8150026 - ECROU More informationQuantity required : 1 |
||||||
|
15 |
AP8150026 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/7/img/71287.jpg)
16 |
FORK FOR REAR BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART" COMMON TO APRILIA/ MOTO-GUZZI MOTORBIKES RANGE -AP8113081- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/8/img/71288.jpg)
17 |
CLIP FOR GEARBOX SELECTOR "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD, 750 DORSODURO/MOTO-GUZZI V7, STELVIO, GRISO -AP8113082- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/3/0/img/108530.jpg)
18 |
REAR BRAKE LEVER- "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 GRISO, STELVIO, 940 BELLAGIO GU06677000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/2/img/71452.jpg)
19 |
REAR BRAKE PEDAL PIN "PIAGGIO GENUINE PART" POUR MOTO-GUZZI 850-1200 NORGE, BREVA, 1200 SPORT/GEAR SELECTOR PIN FOR APRILIA MOTORBIKES -AP8121221- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
20 |
LEVER RUBBER FOR REAR BRAKE LEVER "PIAGGIO GENUINE PART" FOR MOTO-GUZZI 850-1200 NORGE, BREVA, 1200 SPORT -AP8120912- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
21 |
GU98682316 - VIS M6X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/1/img/71891.jpg)
22 |
AP8150462 - BAGUE SEEGER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/9/9/img/71499.jpg)
23 |
AP8121927 - RESSORT MAN.FERIN AR.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/5/1/img/70751.jpg)
24 |
REAR BRAKE PEDAL PIN "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -884033- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/3/8/img/71738.jpg)
25 |
AP8144007 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/6/img/73556.JPG)
26 |
GU95008310 - RONDELLE 10,5X22X2,5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/1/img/71281.jpg)
27 |
STOP LAMP SWITCH "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA / MOTO-GUZZI MOTORBIKES -AP8112996- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/4/img/71164.jpg)
28 |
AP8101890 - COLLIER More informationQuantity required : 3 |
||||||
|
29 |
GU98350210 - VIS TBEI M5X10 More informationQuantity required : 3 |
All the exploded views of this vehicle
-
