Vehicle Exploded View - MOTO-GUZZI GRISO 850 Griso V IE 850 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

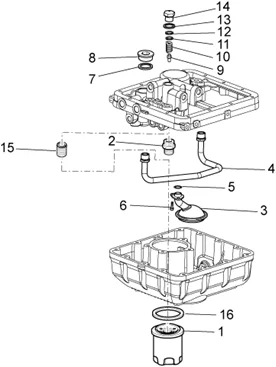

Moteur : 34.47 FILTRES À HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/491/Griso_V_IE_850_2006-2007_34.47.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/3/1/4/0/img/103140.jpg)
1 |
OIL FILTER "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 SPORT 2006>, 850-1100-1200 BREVA, CALIFORNIA 1100 1999>, 1200 NORGE 2006>, V11, BELLAGIO 2007> 1200 STELVIO 2009> -GU30153000- More informationQuantity required : 1 |
||||||
2 |
GU30003800 - RACCORD More informationQuantity required : 1 |
||||||
|
3 |
GU05152230 - FILTRE A HUILE More informationQuantity required : 1 |
||||||
|
4 |
GU05005730 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/5/9/img/126159.jpg)
5 |
GU90706151 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
6 |
GU98682316 - VIS M6X16 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/9/0/4/img/99904.jpg)
7 |
976636 - GUARNIZIONE IN RAME 32.5X38X1.5 More informationQuantity required : 1 |
||||||
|
8 |
GU01163600 - TAPPO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/6/1/img/126161.jpg)
9 |
OIL "BY-PASS" PISTON - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU30150900- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/6/2/img/126162.jpg)
10 |
GU94321077 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
11 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/6/3/img/126163.jpg)
12 |
GU30158900 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/6/4/img/126164.jpg)
13 |
GU18144350 - RONDELLE More informationQuantity required : 1 |
||||||
|
14 |
GU31159050 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/1/7/img/68817.jpg)
15 |
OIL FILTER UNION "PIAGGIO GENUINE PART" COMMON FOR MAXISCOOTERS 400-500 CC AND MOTO-GUZZI -829122- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/8/9/5/img/100895.jpg)
16 |
981115 - (*) GUARNIZIONE FILTRO More informationQuantity required : 1 |
