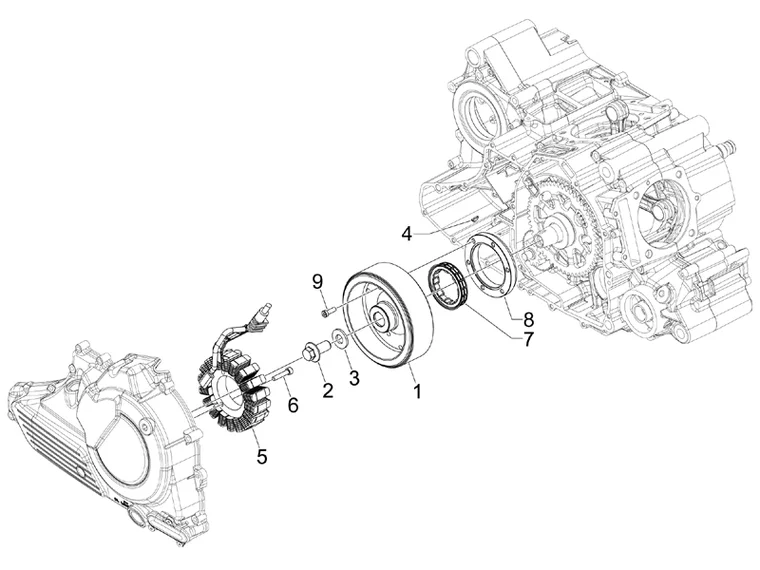

Vehicle Exploded View - GILERA GP 800 2007-2008 GILERA

Moteur : 01.21 VOLANT MAGNETIQUE
Volant magnetique
Search
58146R - VOLANT CPLT

1
P2R reference P2R reference 67221
Maker reference Maker reference 58146R

58146R - VOLANT CPLT

More information

Quantity required : 1
B015563 - VIS

2
P2R reference P2R reference 72689
Maker reference Maker reference B015563

B015563 - VIS

More information

Quantity required : 1
825725 - RONDELLE

3
P2R reference P2R reference 68564
Maker reference Maker reference 825725

825725 - RONDELLE

More information

Quantity required : 1
WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -000267-

4
P2R reference P2R reference 63721
Maker reference Maker reference 000267

WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -000267-

More information

Quantity required : 1
58183R - STATOR COMPLET

5
P2R reference P2R reference 67232
Maker reference Maker reference 58183R

58183R - STATOR COMPLET

More information

Quantity required : 1
597564 - VIS

6
P2R reference P2R reference 67347
Maker reference Maker reference 597564

597564 - VIS

More information

Quantity required : 3
830389 - ROUE LIBRE

7
P2R reference P2R reference 68912
Maker reference Maker reference 830389

830389 - ROUE LIBRE

More information

Quantity required : 1
830390 - CIRCLIPS

8
P2R reference P2R reference 68914
Maker reference Maker reference 830390

830390 - CIRCLIPS

More information

Quantity required : 1
B013207 - VIS

9
P2R reference P2R reference 72624
Maker reference Maker reference B013207

B013207 - VIS

More information

Quantity required : 6
