Vehicle Exploded View - GILERA GP 800 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

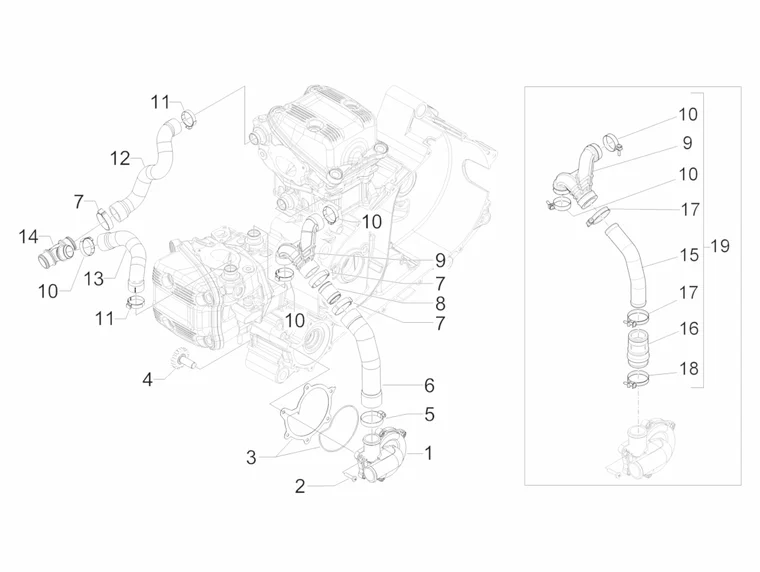

Moteur : 01.19 POMPE À EAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/174/GP_800_2007-2008-074.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/0/1/img/72801.jpg)
1 |
WATER PUMP COVER "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV -B019357 - More informationQuantity required : 1 |
||||||
2 |
1A002998 - VIS M5X22 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/7/5/img/72775.jpg)
3 |
GASKET FOR WATER PUMP COVER "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV, MANA -B018029- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/2/6/img/69026.jpg)
4 |
832926 - ENGRENAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/9/9/0/img/77990.jpg)
5 |
298576 - COLLIER More informationQuantity required : 1 |
||||||
|
6 |
877375 - TUYAU More informationQuantity required : 1 |
||||||
|
7 |
878608 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/5/img/72885.jpg)
7 |
CM001926 - COLLIER More informationQuantity required : 3 |
||||||
|
8 |
877376 - RACCORD More informationQuantity required : 1 |
||||||
|
9 |
876695 - CONDUITE D'ARRIVEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/2/4/img/149124.jpg)
10 |
1A006280 - COLLIER More informationQuantity required : 5 |
||||||
|
10 |
1A006280 - COLLIER More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/9/img/72869.jpg)
11 |
COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -CM001908- More informationQuantity required : 2 |
||||||
|
12 |
847376 - TUYAU EAU More informationQuantity required : 1 |
||||||
|
13 |
834311 - TUYAU EAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/1/1/img/69211.jpg)
14 |
842071 - RACCORD T More informationQuantity required : 1 |
||||||
|
15 |
877376 - RACCORD More informationQuantity required : 1 |
||||||
|
16 |
880256 - TUYAU More informationQuantity required : 1 |
||||||
|
17 |
878608 - COLLIER More informationQuantity required : 2 |
||||||
|
18 |
878608 - COLLIER More informationQuantity required : 1 |
||||||
|
19 |
497573 - KIT DURITES GP 800 More informationQuantity required : 1 |
