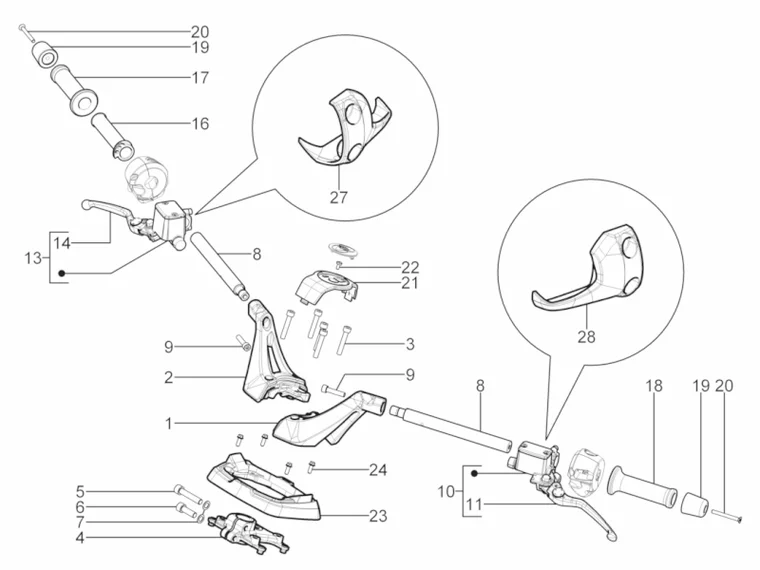

Vehicle Exploded View - GILERA GP 800 2007-2008

	P2R reference	139418
	Maker reference	6531741

6531741 - GUIDON GAU.

	P2R reference	139419
	Maker reference	6531751

6531751 - GUIDON DRT.

	P2R reference	68261
	Maker reference	654483

654483 - VIS

	P2R reference	68231
	Maker reference	653343

653343 - SUPPORT GUIDON DRO.

	P2R reference	67285
	Maker reference	583480

583480 - BOULON

	P2R reference	67069
	Maker reference	564632

564632 - VIS

	P2R reference	65350
	Maker reference	012543

012543 - RONDELLE

	P2R reference	68255
	Maker reference	654203

654203 - EL!MENT COLL.

	P2R reference	68262
	Maker reference	654484

654484 - VIS

	P2R reference	68162
	Maker reference	650714

REAR BRAKE MASTER CYLINDER- HENG-TONG "PIAGGIO GENUINE PART" GILERA 800 GP 2007> -650714-

	P2R reference	95756
	Maker reference	CM081502

REAR BRAKE MASTER CYLINDER- BREMBO "PIAGGIO GENUINE PART" GILERA 800 GP 2007> -CM081502-

	P2R reference	68394
	Maker reference	666050

LEFT BRAKE LEVER - HENG-TONG "PIAGGIO GENUINE PART" GILERA GP 800/APRILIA 850 SRV -666050-

	P2R reference	83008
	Maker reference	601646

FRONT BRAKE MASTER CYLINDER- BREMBO "PIAGGIO GENUINE PART" GILERA 800 GP 2007> -601646-

	P2R reference	68163
	Maker reference	650715

FRONT BRAKE MASTER CYLINDER- HENG-TONG "PIAGGIO GENUINE PART" GILERA 800 GP 2007> -650715-

	P2R reference	86913
	Maker reference	649165

649165 - LEVIER DROIT

	P2R reference	68393
	Maker reference	666049

RIGHT BRAKE LEVER - HENG-TONG "PIAGGIO GENUINE PART" GILERA GP 800/APRILIA 850 SRV -666049-

	P2R reference	71043
	Maker reference	975633

975633 - MANCHON COM.GAZ

	P2R reference	67274
	Maker reference	583094

583094 - POIGNEE D

	P2R reference	67233
	Maker reference	581900

581900 - POIGNEE

	P2R reference	68465
	Maker reference	673243

BAR ENDS - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -673243

	P2R reference	158365
	Maker reference	1B006376

SCREW - FOR BAR ENDS -1B006376-

	P2R reference	158365
	Maker reference	271434

SCREW - FOR BAR ENDS -1B006376-

	P2R reference	87657
	Maker reference	653170000C

653170000C - COUVRE GUIDON SUP.

	P2R reference	68335
	Maker reference	656512

656512 - COUVRE GUIDON SUP.

	P2R reference	68336
	Maker reference	6565120090

6565120090 - COUVRE GUIDON SUP.

	P2R reference	109024
	Maker reference	1A003111

1A003111 - VIS M5X10

	P2R reference	68223
	Maker reference	653169

653169 - ENCADREMENT

	P2R reference	87653
	Maker reference	65316900BR

65316900BR - ENCADREMENT

	P2R reference	87654
	Maker reference	65316900ET

HANDLEBAR COVER "PIAGGIO GENUINE PART" GILERA 800 GP -65316900ET

	P2R reference	72723
	Maker reference	B016777

B016777 - VIS

	P2R reference	68172
	Maker reference	650966

650966 - COUVERTURE DR.

	P2R reference	68171
	Maker reference	650965

650965 - COUVERTURE
