Vehicle Exploded View - GILERA GP 800 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

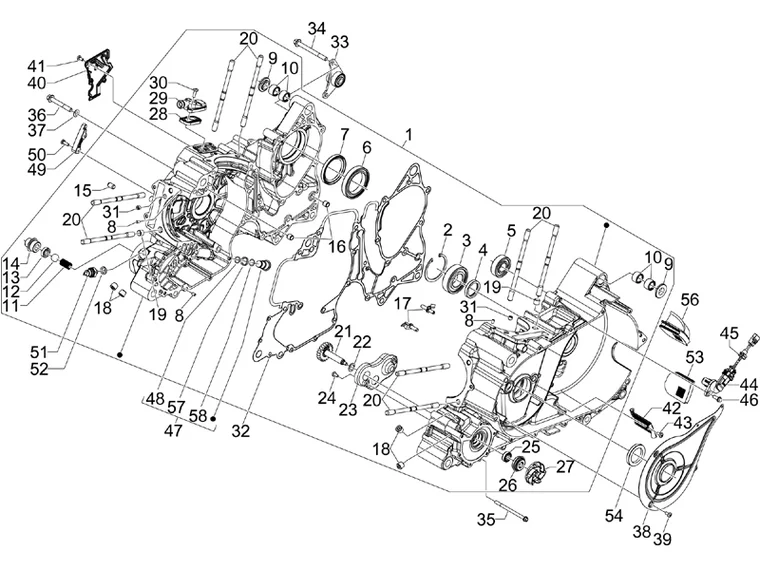

Moteur : 01.05 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/174/GP_800_2007-2008-029.png)
1 |
B0173160001 - CARTER 1 More informationQuantity required : 1 |
||||||
|
1 |
B0173160002 - CARTER 2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/7/img/63827.jpg)
2 |
006662 - CIRCLIPS S00666200 More informationQuantity required : 1 |
||||||
|
3 |
82926R - ROULEMENT More informationQuantity required : 1 |
||||||
|
4 |
GASKET RING FOR TRANSMISSION SHAFT "PIAGGIO GENUINE PART" GILERA GP 800 2007> -825023- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/8/2/img/69082.jpg)
5 |
BEARING FOR TRANSMISSION REDUCER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTEUR -833701- More informationQuantity required : 1 |
||||||
|
6 |
TRANSMISSION BEARING "PIAGGIO GENUINE PART" GILERA GP 800/APRILIA 850 SRV -82925R- More informationQuantity required : 1 |
||||||
|
7 |
845443 - JOINT 50X68 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/9/img/66669.JPG)
8 |
484993 - PIVOT DE CENTR. More informationQuantity required : 6 |
||||||
|
9 |
623857 - JOINT More informationQuantity required : 2 |
||||||
|
10 |
845684 - CAGE POULI More informationQuantity required : 4 |
||||||
|
11 |
832983 - RESSORT More informationQuantity required : 1 |
||||||
|
12 |
832980 - SFERA More informationQuantity required : 1 |
||||||
|
13 |
832984 - RESSORT More informationQuantity required : 1 |
||||||
|
14 |
832985 - RACCORD FILTRE A HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
15 |
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/7/img/72697.jpg)
16 |
CENTERING PIN (11X10) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -B015957- More informationQuantity required : 2 |
||||||
|
17 |
830666 - GICLEUR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/7/3/img/72673.jpg)
18 |
B015433 - PLUG VISSES More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/2/img/68552.jpg)
19 |
JET FOR OIL PIPE ON CYLINDER HEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO-GUZZI MOTORBIKES+ MAXISCOOTER 400-500 CC -825597- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/2/6/img/109026.jpg)
20 |
1A003631R - GOUJON More informationQuantity required : 8 |
||||||
|
21 |
872025 - AXE POMPE-EAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/0/8/img/71008.JPG)
22 |
974290 - RONDELLE More informationQuantity required : 1 |
||||||
|
23 |
834178 - TOLE More informationQuantity required : 1 |
||||||
|
24 |
1A003111 - VIS M5X10 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/1/1/img/174611.JPG)
25 |
1A018564 - SEAL RING More informationQuantity required : 1 |
||||||
|
25 |
1A018564 - SEAL RING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/7/6/img/68876.jpg)
26 |
WATER PUMP GASKET "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250 X7, X8, X-EVO, BEVERLY, X10/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -82991R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/9/5/img/68695.JPG)
28 |
82778R - SUPPORT More informationQuantity required : 1 |
||||||
|
29 |
827209 - COUVERCLE More informationQuantity required : 1 |
||||||
|
30 |
B017296 - VIS More informationQuantity required : 2 |
||||||
|
31 |
825649 - GICLEUR CARTER More informationQuantity required : 2 |
||||||
|
32 |
872625 - JOINT More informationQuantity required : 1 |
||||||
|
33 |
875518 - SUPPORT More informationQuantity required : 1 |
||||||
|
34 |
874746 - VIS More informationQuantity required : 6 |
||||||
|
35 |
874747 - VIS More informationQuantity required : 11 |
||||||
|
36 |
874748 - VIS More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
37 |
DRAIN SCREW GASKET (8,2X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703- More informationQuantity required : 7 |
||||||
|
38 |
832981 - DEFLECTEUR More informationQuantity required : 1 |
||||||
|
39 |
1A003111 - VIS M5X10 More informationQuantity required : 5 |
||||||
|
40 |
843317 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
41 |
1A003111 - VIS M5X10 More informationQuantity required : 3 |
||||||
|
42 |
834345 - GRILLE More informationQuantity required : 1 |
||||||
|
43 |
1A003111 - VIS M5X10 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/2/8/img/69028.jpg)
44 |
SPEEDOMETER SENSOR "PIAGGIO GENUINE PART" 125-300 X10, BEVERLY, 125-250 X-EVO/APRILIA 850 SRV, 750 DORSODURO, SHIVER -8329635- More informationQuantity required : 1 |
||||||
|
45 |
584838 - FAISCEAU CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
46 |
B016777 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/4/img/72694.jpg)
47 |
OIL DRAIN CAP "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV, MANA -B015860- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/6/2/img/69262.jpg)
48 |
843186 - JOINT SPIE More informationQuantity required : 1 |
||||||
|
49 |
831335 - PATIN More informationQuantity required : 1 |
||||||
|
50 |
B017296 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/3/3/img/67933.jpg)
51 |
SENSOR FOR OIL PRESSURE "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTER AND MOTORBIKES (WITH ADAPTATOR 99327 FOR 1200 GRISO, NORGE, STELVIO, SPORT) -1D001138- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/3/img/66703.jpg)
52 |
GASKET FOR DRAIN CAP OR MANOMETER "PIAGGIO GENUINE PART" COMMON TO THE RANGE -486075- More informationQuantity required : 1 |
||||||
|
53 |
874451 - DEFLECTEUR More informationQuantity required : 1 |
||||||
|
54 |
832987 - CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/6/5/img/68965.jpg)
55 |
831393 - JOINT More informationQuantity required : 1 |
||||||
|
56 |
875442 - DEFLECTEUR More informationQuantity required : 1 |
||||||
|
57 |
831393 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/7/3/img/68573.jpg)
58 |
O'RING GASKET FOR OIL PUMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -825952- More informationQuantity required : 1 |
All the exploded views of this vehicle
-
