Vehicle Exploded View - GILERA DNA 180 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

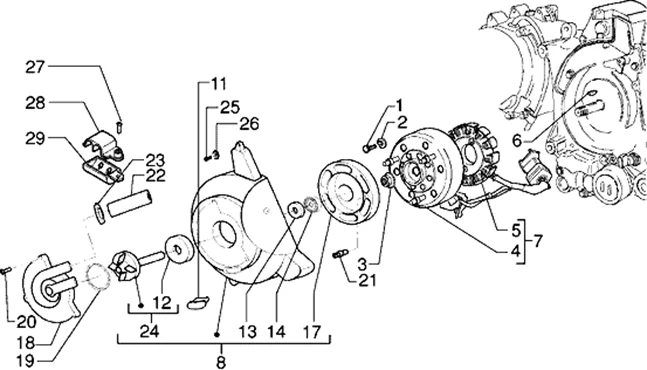

Moteur : T16 VOLANT MAGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/675/DNA_180_1998-2005_T16.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/0/img/68770.jpg)
1 |
SCREW - (5X22) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -828662- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/7/img/63837.jpg)
2 |
006965 - RONDELLE More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/3/img/72693.jpg)
3 |
NUT - FOR IGNITION FLYWHEEL/CLUTCH "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250 -B015804 More informationQuantity required : 1 |
||||||
4 |
584689 - ROTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/7/img/67307.jpg)
5 |
IGNITION STATOR - KOKUSAN "PIAGGIO GENUINE PART" 125 FLY, LIBERTY, X8, X9, VESPA LX, VESPA S/APRILIA 125 SPORT-CITY, SR/GILERA 125 RUNNER -584690- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
6 |
WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -000267- More informationQuantity required : 1 |
||||||
|
7 |
58141R - VOLANT COMPLET More informationQuantity required : 1 |
||||||
|
8 |
WATER PUMP "PIAGGIO GENUINE PART" X9, BEVERLY, HEXAGON 1998>2005/GILERA 125 RUNNER 1998>2005 -8403215- More informationQuantity required : 1 |
||||||
|
9 |
SCREW - (5X22) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -828662- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/4/8/img/68548.jpg)
11 |
825529 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/2/5/img/66925.jpg)
12 |
SEAL RING GASKET- FOR WATER PUMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -497486- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/7/6/img/68876.jpg)
12 |
WATER PUMP GASKET "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250 X7, X8, X-EVO, BEVERLY, X10/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -82991R More informationQuantity required : 1 |
||||||
|
13 |
SEAL RING GASKET- FOR WATER PUMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -497486- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/9/0/img/68690.jpg)
14 |
WATER PUMP BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC 1998>2005 -82772R- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/5/9/img/68759.jpg)
15 |
SCREW - FOR WATER PUMP HOUSING "PIAGGIO GENUINE PART" 125 X-EVO, X9, BEVERLY, VESPA GTS/GILERA 125 NEXUS, RUNNER -828493 - More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/8/5/img/69185.jpg)
16 |
WATER PUMP SHAFT "PIAGGIO GENUINE PART" 125 X9, X8, BEVERLY, HEXAGON, VESPA GT/GILERA 125 RUNNER 4 STROKE, DNA/APRILIA 125 ATLANTIC, SCARABEO -841333 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/4/3/img/70443.jpg)
17 |
WATER PUMP DRIVE KEY "PIAGGIO GENUINE PART" 125 MP3, X7, X9, X-EVO, BEVERLY, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 ATLANTIC, SPORT-CITY -872908 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/6/img/66706.jpg)
18 |
WATER PUMP COVER "PIAGGIO GENUINE PART" 125 X8, X9, VESPA GT, BEVERLY/GILERA 125 RUNNER/APRILIA 125 ATLANTIC, SCARABEO -486237- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/7/1/img/66671.jpg)
19 |
O'RING GASKET FOR WATER PUMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -485080- More informationQuantity required : 1 |
||||||
|
20 |
SCREW - (5X22) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -828662- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/1/img/68771.jpg)
21 |
SCREW - FOR WATER PUMP DRIVE "PIAGGIO GENUINE PART" 125 MP3, VESPA GTS, X-EVO 2007>, FLY, VESPA LX 2005>, X9 2003>/GILERA 125 NEXUS 2007>, RUNNER 2005>/APRILIA 125 ATLANTIC 2003> -82869R More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/9/0/img/70690.jpg)
22 |
COOLANT HOSE - WATER PUMP TO CYLINDER "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER 125 CC -878666- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/9/img/72869.jpg)
23 |
COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -CM001908- More informationQuantity required : 1 |
||||||
|
24 |
WATER PUMP SHAFT "PIAGGIO GENUINE PART" 125 X9, X8, BEVERLY, HEXAGON, VESPA GT/GILERA 125 RUNNER 4 STROKE, DNA/APRILIA 125 ATLANTIC, SCARABEO -841333 More informationQuantity required : 1 |
||||||
|
25 |
SCREW - FOR WATER PUMP HOUSING "PIAGGIO GENUINE PART" 125 X-EVO, X9, BEVERLY, VESPA GTS/GILERA 125 NEXUS, RUNNER -828493 - More informationQuantity required : 4 |
||||||
|
26 |
006965 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/8/img/66068.jpg)
27 |
SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958- More informationQuantity required : 1 |
||||||
|
28 |
COUVERTURE |
||||||
|
29 |
COUVERTURE |
