Vehicle Exploded View - GILERA DNA 180 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

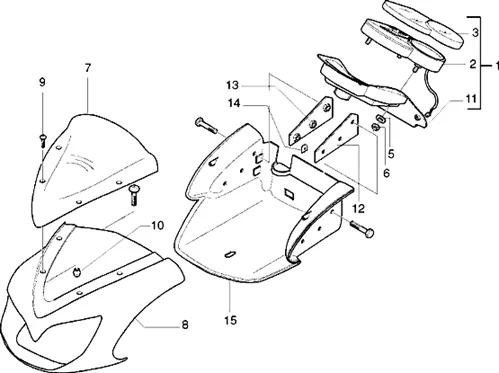

Guidon : T34 GR. INSTRUMENTS-CARENAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/675/DNA_180_1998-2005_T34.PNG)
0 |
5739140034 - AUTOCOLLANT GILERA ROUGE C30 More informationQuantity required : 1 |
||||||
|
1 |
5828150090 - COMPTEUR DNA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/4/1/9/img/79419.jpg)
2 |
DASHBOARD GLASS "PIAGGIO GENUINE PART" GILERA 50-125 DNA -497045- More informationQuantity required : 1 |
||||||
|
3 |
DASHBOARD GLASS "PIAGGIO GENUINE PARTS" GILERA 50-125 DNA -497046- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
5 |
012533 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
6 |
020106 - ECROU S02010600 More informationQuantity required : 3 |
||||||
|
7 |
970093 - PARE BRISE More informationQuantity required : 1 |
||||||
|
8 |
FRONT SHIELD - "PIAGGIO GENUINE PART" GILERA 50 DNA GREY 679 -97008950N7- More informationQuantity required : 1 |
||||||
|
8 |
FRONT SHIELD - "PIAGGIO GENUINE PART" GILERA 50 DNA RED 894 -97008950R7- More informationQuantity required : 1 |
||||||
|
8 |
FRONT SHIELD - "PIAGGIO GENUINE PART" GILERA 50 DNA YELLOW 384 -97008950G9- More informationQuantity required : 1 |
||||||
|
8 |
FRONT SHIELD - "PIAGGIO GENUINE PART" GILERA 50 DNA BLACK 94 -9700895090- More informationQuantity required : 1 |
||||||
|
8 |
FRONT SHIELD - "PIAGGIO GENUINE PART" GILERA 50 DNA BLUE 280 -97008950A3- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/5/1/6/img/81516.jpg)
9 |
581175 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/4/img/67204.jpg)
10 |
BUSH FOR WIND SHIELD "PIAGGIO GENUINE PART" 50 NRG, TYPHOON 2005>, 300 YOURBAN/GILERA 50 RUNNER 2005> -581174- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/0/7/5/img/94075.jpg)
11 |
DASHBOARD BACK SUPPORT "PIAGGIO GENUINE PART" GILERA 50-125 DNA -970090000C- More informationQuantity required : 1 |
||||||
|
12 |
970197 - ETRIER More informationQuantity required : 1 |
||||||
|
13 |
970198 - ETRIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
14 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
15 |
HEADLIGHT COVER - LOWER "PIAGGIO GENUINE PART" PIAGGIO GILERA 50-125 DNA -9701960090- More informationQuantity required : 1 |
