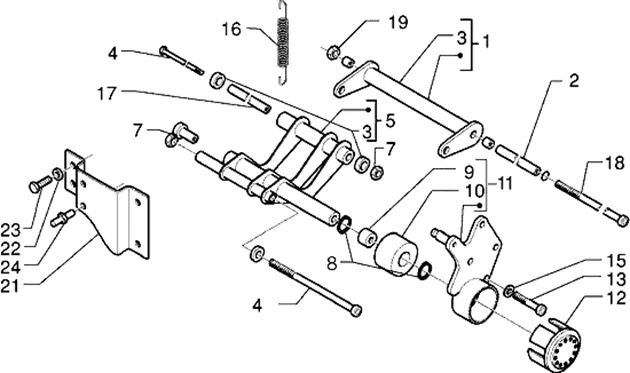

Vehicle Exploded View - GILERA DNA 180 1998-2005 GILERA

Châssis : T32 BRAS OSCILLANT
Bras oscillant
Search
SWINGING ARM - ON FRAME SIDE "PIAGGIO GENUINE PART" 125-250-300-500 MP3, 125 LIBERTY, 125 TYPHOON -56411R-

1
P2R reference P2R reference 67046
Maker reference Maker reference 56411R

SWINGING ARM - ON FRAME SIDE "PIAGGIO GENUINE PART" 125-250-300-500 MP3, 125 LIBERTY, 125 TYPHOON -56411R-

More information

Quantity required : 1
SPACER- FOR SWINGING ARM (L228mm) "PIAGGIO GENUINE PART" 125-250-300 MP3 2007>, 125 X8 2004>, X9 2003>, X-EVO 2007>, FLY 2005>, LIBERTY 2006>/GILERA 125-250-300 NEXUS 2007> -CM067803-

2
P2R reference P2R reference 72977
Maker reference Maker reference CM067803

SPACER- FOR SWINGING ARM (L228MM) "PIAGGIO GENUINE PART" 125-250-300 MP3 2007>, 125 X8 2004>, X9 2003>, X-EVO 2007>, FLY 2005>, LIBERTY 2006>/GILERA 125-250-300 NEXUS 2007> -CM067803-

More information

Quantity required : 1
ROLLER BEARING FOR SWINGING ARM "PIAGGIO GENUINE PART" FOR ALL SCOOTERS 125-250-300 -56127R-

3
P2R reference P2R reference 67004
Maker reference Maker reference 56127R

ROLLER BEARING FOR SWINGING ARM "PIAGGIO GENUINE PART" FOR ALL SCOOTERS 125-250-300 -56127R-

More information

Quantity required : 1
597081 - VIS

4
P2R reference P2R reference 67330
Maker reference Maker reference 597081

597081 - VIS

More information

Quantity required : 1
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440-

7
P2R reference P2R reference 63765
Maker reference Maker reference 0024405

NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440-

More information

Quantity required : 2
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006416-

8
P2R reference P2R reference 63814
Maker reference Maker reference 0064165

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006416-

More information

Quantity required : 1
BUSH FOR SWINGING ARM "PIAGGIO GENUINE PART" 125-250-300 LEADER -273460-

9
P2R reference P2R reference 66126
Maker reference Maker reference 273460

BUSH FOR SWINGING ARM "PIAGGIO GENUINE PART" 125-250-300 LEADER -273460-

More information

Quantity required : 2
SILENBLOC - ENGINE SUPPORT "PIAGGIO GENUINE PART" 125-250 MP3 2007>, 125 X8 2004>, X9 2003>, X-EVO 2007>, X10 2012>, VESPA GTS 2007>/GILERA 125-250 NEXUS 2007>, RUNNER 2005>/APRILIA 125 SR-MAX 2011> -272750-

10
P2R reference P2R reference 66116
Maker reference Maker reference 272750

SILENBLOC - ENGINE SUPPORT "PIAGGIO GENUINE PART" 125-250 MP3 2007>, 125 X8 2004>, X9 2003>, X-EVO 2007>, X10 2012>, VESPA GTS 2007>/GILERA 125-250 NEXUS 2007>, RUNNER 2005>/APRILIA 125 SR-MAX 2011> -272750-

More information

Quantity required : 1
SILENTBLOCK BRACKET "PIAGGIO GENUINE PART" GILERA 125 DNA -970316-

11
P2R reference P2R reference 94158
Maker reference Maker reference 970316

SILENTBLOCK BRACKET "PIAGGIO GENUINE PART" GILERA 125 DNA -970316-

More information

Quantity required : 1
655151 - COUVERCLE

12
P2R reference P2R reference 68283
Maker reference Maker reference 655151

655151 - COUVERCLE

More information

Quantity required : 1
598919 - VIS

13
P2R reference P2R reference 67369
Maker reference Maker reference 598919

598919 - VIS

More information

Quantity required : 2
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047-

15
P2R reference P2R reference 68491
Maker reference Maker reference 709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047-

More information

Quantity required : 2
SWING ARM SPRING "PIAGGIO GENUINE PART" 125-250 MP3, X-EVO, X9, BEVERLY/GILERA 125-250-300 NEXUS -597490-

16
P2R reference P2R reference 67341
Maker reference Maker reference 597490

SWING ARM SPRING "PIAGGIO GENUINE PART" 125-250 MP3, X-EVO, X9, BEVERLY/GILERA 125-250-300 NEXUS -597490-

More information

Quantity required : 1
SPACER- FOR SWINGING ARM (L183mm) "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC -CM067801-

17
P2R reference P2R reference 72975
Maker reference Maker reference CM067801

SPACER- FOR SWINGING ARM (L183MM) "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC -CM067801-

More information

Quantity required : 1
564876 - VIS

18
P2R reference P2R reference 80153
Maker reference Maker reference 564876

564876 - VIS

More information

Quantity required : 1
564878 - ECROU

19
P2R reference P2R reference 67084
Maker reference Maker reference 564878

564878 - ECROU

More information

Quantity required : 1
SCREW - FOR SUSPENSION ARM (10X202) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -271807-

20
P2R reference P2R reference 66106
Maker reference Maker reference 271807

SCREW - FOR SUSPENSION ARM (10X202) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -271807-

More information

Quantity required : 1
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047-

22
P2R reference P2R reference 68491
Maker reference Maker reference 709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047-

More information

Quantity required : 2
SCREW - MULTI PURPOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -319165-

23
P2R reference P2R reference 66335
Maker reference Maker reference 319165

SCREW - MULTI PURPOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -319165-

More information

Quantity required : 2
970294 - TIGE

24
P2R reference P2R reference 94156
Maker reference Maker reference 970294

970294 - TIGE

More information

Quantity required : 2
