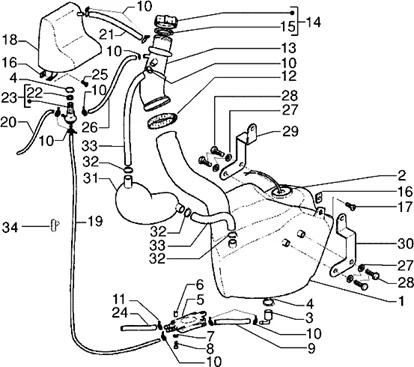

Châssis : T29 RESERVOIR CARBURANT-DEGAZEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/675/DNA_180_1998-2005_T29.PNG)
1 |
|
||||||
|
2 |
CM075605 - JAUGE A HUILE More informationQuantity required : 1 |
||||||
|
3 |
574629 - RACCORD ESSENCE FX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
4 |
FUEL TAP HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/ MAXISCOOTER -879888- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/2/6/img/73126.jpg)
5 |
FUEL PUMP "PIAGGIO GENUINE PART" 50 FLY 4 STROKE 2012>, NRG 2005>, 125 MP3 2007>, X8 2004>, X-EVO 2007>/ 50-125 GILERA RUNNER 2005>/APRILIA 125 ATLANTIC 2003> -CM120903 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/0/5/img/65805.jpg)
6 |
184400 - ENTRETOISE AR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
7 |
006976 - RONDELLE S00697600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/0/img/65640.jpg)
8 |
031089 - BOULON S03108900 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/1/9/img/65919.jpg)
9 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE ( 5M ROLL) -1R000160 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/1/img/72891.jpg)
10 |
CM002904 - COLLIER More informationQuantity required : 7 |
||||||
|
11 |
CM002904 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/4/img/72894.jpg)
11 |
CM002908 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/1/img/72871.jpg)
12 |
CM001910 - COLLIER More informationQuantity required : 1 |
||||||
|
13 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/8/7/img/78087.jpg)
14 |
299913 - BOUCHON RESERVOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/6/img/66026.jpg)
15 |
FUEL CAP GASKET "PIAGGIO GENUINE PART" COMMON TO MAXISCOOTER RANGE -258160- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
16 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
17 |
SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836 More informationQuantity required : 4 |
||||||
|
18 |
DEGASEUR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/2/9/img/109029.jpg)
19 |
DEPRESSION PIPE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 4 STROKE -1R000158 More informationQuantity required : 1 |
||||||
|
20 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE ( 5M ROLL) -1R000160 More informationQuantity required : 1 |
||||||
|
21 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE ( 5M ROLL) -1R000160 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/5/img/65825.jpg)
22 |
FUEL TAP GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER + MAXISCOOTER -196868- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/7/3/img/68473.jpg)
23 |
FUEL TAP "PIAGGIO GENUINE PART" 50-125 FLY 2005>, LIBERTY 1998>, 50 TYPHOON 2010>, ZIP 2000>, 125 VESPA LX 2005>, VESPA GTS 2007>/APRILIA 50-125 SPORT-CITY 2008> -674594 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/2/img/72862.jpg)
24 |
FUEL HOSE (5X10) L1060 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -CM001432 More informationQuantity required : 1 |
||||||
|
25 |
257404 - VIS More informationQuantity required : 1 |
||||||
|
26 |
TUBE |
||||||
|
27 |
006976 - RONDELLE S00697600 More informationQuantity required : 4 |
||||||
|
28 |
031084 - BOULON More informationQuantity required : 4 |
||||||
|
29 |
576786 - ETRIER More informationQuantity required : 1 |
||||||
|
30 |
576787 - ETRIER More informationQuantity required : 1 |
||||||
|
31 |
576777 - RESERVOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
32 |
CM001905 - COLLIER More informationQuantity required : 1 |
||||||
|
33 |
576896 - TUBE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/0/6/6/img/94066.jpg)
33 |
970079 - TUBE More informationQuantity required : 1 |
||||||
|
34 |
"TEE" UNION "PIAGGIO GENUINE PART" APRILIA RSV4 1000 2009>2016, TUONO V4 1000 R 2011>2015/ PIAGGIO TYPHOON 125 4 STROKE 2011>2017, X9 125 1998>2005 -828325 More informationQuantity required : 1 |
||||||
|
35 |
"TEE" UNION "PIAGGIO GENUINE PART" APRILIA RSV4 1000 2009>2016, TUONO V4 1000 R 2011>2015/ PIAGGIO TYPHOON 125 4 STROKE 2011>2017, X9 125 1998>2005 -828325 More informationQuantity required : 1 |
||||||
|
36 |
031057 - BOULON S03105700 More informationQuantity required : 1 |
||||||
|
37 |
CIRCLIPS |
||||||
|
38 |
|
||||||
|
39 |
|
