Vehicle Exploded View - MOTO-GUZZI DAYTONA 1000 Daytona RS 1000 1997-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

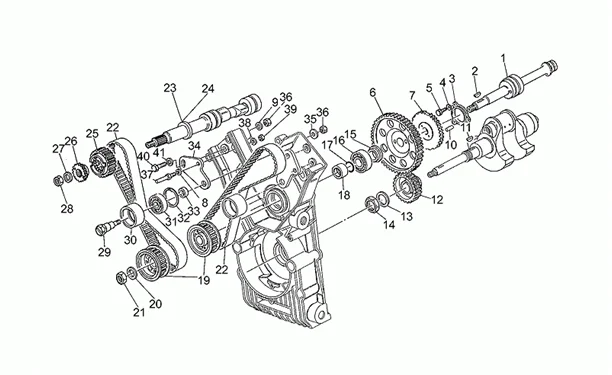

Moteur : 34.33 DISTRIBUTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/487/Daytona_RS_1000_1997-1998_34.33.PNG)
1 |
GU30052000 - ARBRE DE TRANSMISSION More informationQuantity required : 1 |
||||||
|
2 |
GU91600565 - RACCORD More informationQuantity required : 1 |
||||||
|
3 |
GU010540016 - BRIDE More informationQuantity required : 1 |
||||||
|
4 |
GU95120065 - RONDELLE 6,5X11X2 More informationQuantity required : 3 |
||||||
|
5 |
GU98054320 - VIS M6X20 More informationQuantity required : 3 |
||||||
|
6 |
GU01054550 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
7 |
976538 - RUOTA FONICA DISTRIBUZION More informationQuantity required : 1 |
||||||
|
8 |
GU95000206 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
9 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
|
10 |
GU14234600 - GOUPILLE More informationQuantity required : 2 |
||||||
|
11 |
GU91702355 - CLAVETTE More informationQuantity required : 1 |
||||||
|
12 |
GU30072000 - ENGRENAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/3/9/img/132739.jpg)
13 |
GU95100837 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/7/9/img/132479.jpg)
14 |
NUT - FOR TIMING SYSTEM SPROCKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU92602525- More informationQuantity required : 1 |
||||||
|
15 |
GU30057700 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/8/8/img/132388.jpg)
16 |
BEARING (20X47X14) FOR TIMING SYSTEM "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU92201220- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/3/img/132223.jpg)
17 |
GASKET RING- BEVEL GEAR (18,77X1,78) "PIAGGIO GENUINE PART" MOTO GUZZI -GU90706188- More informationQuantity required : 1 |
||||||
|
18 |
GU30057900 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
19 |
GU30057400 - POULIE DE DISTRIBUTION More informationQuantity required : 2 |
||||||
|
20 |
GU95004217 - RONDELLE 17X27X2 More informationQuantity required : 1 |
||||||
|
21 |
GU92602316 - ECROU M6X1,5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/5/0/8/img/130508.JPG)
22 |
TIMING BELT "PIAGGIO GENUINE PART" MOTO-GUZZI 1000 DAYTONA, MGS-01, V10 -GU30055300- More informationQuantity required : 2 |
||||||
|
23 |
GU30053300 - ARBRE A CAMES D More informationQuantity required : 1 |
||||||
|
25 |
GU30056500 - POULIE ARBRE A CAMES More informationQuantity required : 2 |
||||||
|
26 |
GU30056400 - ENGRENAGE More informationQuantity required : 2 |
||||||
|
27 |
GU95100524 - RONDELLE More informationQuantity required : 2 |
||||||
|
28 |
GU92602514 - ECROU M14X1,5 More informationQuantity required : 2 |
||||||
|
29 |
GU30059300 - PIVOT TENDEUR COURROIE More informationQuantity required : 2 |
||||||
|
30 |
GU30058700 - TENDEUR COURROIE More informationQuantity required : 2 |
||||||
|
31 |
GU92201414 - ROULEMENT 15X42X13 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/3/9/img/132139.JPG)
32 |
GU90272042 - JONC D ARRET More informationQuantity required : 2 |
||||||
|
33 |
GU91181206 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
34 |
GU30058300 - PLAQUE More informationQuantity required : 2 |
||||||
|
35 |
GU30054800 - RONDELLE More informationQuantity required : 2 |
||||||
|
36 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 4 |
||||||
|
37 |
GU30059400 - PIVOT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/0/img/132750.jpg)
38 |
GU95129115 - RONDELLE More informationQuantity required : 2 |
||||||
|
40 |
GU98054422 - VIS More informationQuantity required : 2 |
||||||
|
41 |
GU95000208 - RONDELLE More informationQuantity required : 2 |
