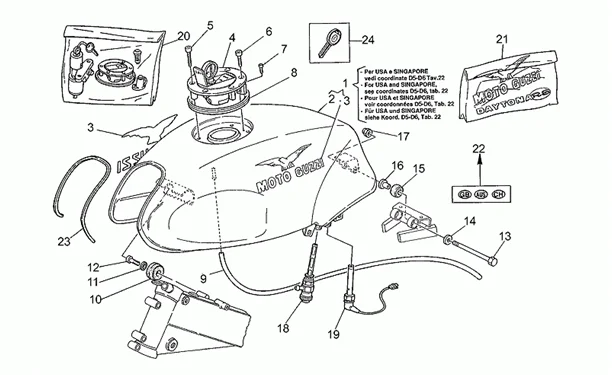

Chassis : 33.19 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/487/Daytona_RS_1000_1997-1998_33.19.PNG)
3 |
GU01917800 - DECALCO DX "MOTO GUZZI" More informationQuantity required : 1 |
||||||
|
4 |
GU01103960 - TAPPO SERBATOIO More informationQuantity required : 1 |
||||||
|
5 |
GU98620230 - VIS M5X30 More informationQuantity required : 3 |
||||||
|
6 |
GU98622210 - VIS M5X10 More informationQuantity required : 3 |
||||||
|
7 |
GU98622215 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/0/img/71420.jpg)
8 |
FUEL CAP SEAL GASKET "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, 1000 CAPONORD, RSV-2/MOTO-GUZZI 750 BREVA, DAYTONA, 1100 V11, SPORT -AP8120893- More informationQuantity required : 1 |
||||||
|
9 |
GU00823944050 - TUBO GOMMA 5X9 SAE30R7 More informationQuantity required : 1 |
||||||
|
10 |
GU66103415 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
11 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/7/img/133187.jpg)
12 |
GU98682420 - VIS TCEI M8X20 More informationQuantity required : 2 |
||||||
|
13 |
GU98052398 - VIS More informationQuantity required : 1 |
||||||
|
14 |
GU95000206 - RONDELLE More informationQuantity required : 1 |
||||||
|
15 |
GU30107100 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
17 |
GU92630106 - ECROU M6X1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/4/2/3/img/101423.jpg)
18 |
FUEL TAP "PIAGGIO GENUINE PART" MOTO-GUZZI 1000 DAYTONA, QUOTA, 1100 SPORT, V11, CALIFORNIA -GU01105460- More informationQuantity required : 1 |
||||||
|
19 |
GU01103001 - SONDE NIVEAU ESSENCE More informationQuantity required : 1 |
||||||
|
22 |
GU29995735 - DECALCOMANIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/3/3/4/img/101334.jpg)
23 |
GU00823931080 - GASKET PVC More informationQuantity required : 1 |
||||||
|
24 |
GU30735500 - CLE PAS CANTEE BRUT More informationQuantity required : 1 |
