Vehicle Exploded View - MOTO-GUZZI DAYTONA 1000 Daytona RS 1000 1997-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

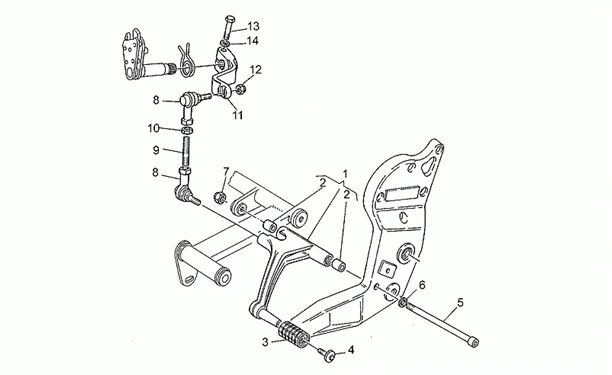

Chassis : 33.40 LEVIER BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/487/Daytona_RS_1000_1997-1998_33.40.PNG)
2 |
GU30252000 - BAGUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/4/5/img/129245.jpg)
3 |
GU14251001 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
4 |
GU98230616 - VIS More informationQuantity required : 1 |
||||||
|
5 |
GU98610410 - PIVOT More informationQuantity required : 1 |
||||||
|
6 |
GU95004208 - RONDELLE More informationQuantity required : 1 |
||||||
|
7 |
GU92630208 - ECROU More informationQuantity required : 1 |
||||||
|
8 |
GU30257725 - FOURCHETTE CPL. More informationQuantity required : 2 |
||||||
|
9 |
GU30257900 - VIS SANS TETE More informationQuantity required : 1 |
||||||
|
10 |
GU92602206 - ECROU More informationQuantity required : 1 |
||||||
|
11 |
GU30258200 - LEVIER More informationQuantity required : 1 |
||||||
|
12 |
GU92630206 - ECROU M6X1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
13 |
GU98084316 - VIS M6X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
14 |
GU61013800 - RONDELLE SPECIALE More informationQuantity required : 1 |
