Vehicle Exploded View - MOTO-GUZZI DAYTONA 1000 Daytona RS 1000 1997-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

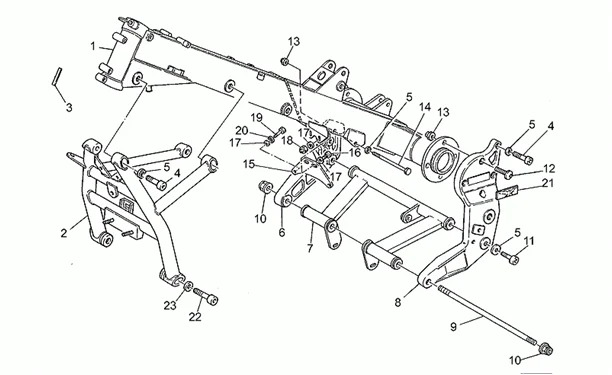

Chassis : 33.22 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/487/Daytona_RS_1000_1997-1998_33.22.PNG)
1 |
GU01400100 - CHASSIS More informationQuantity required : 1 |
||||||
|
2 |
GU01420200 - CULLA More informationQuantity required : 1 |
||||||
|
3 |
GU02931600 - DECALCO PROTEZIONE More informationQuantity required : 1 |
||||||
|
4 |
GU98610525 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
5 |
OIL PUMP SHAFT WASHER (10,5X16X1) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -AP8152220- More informationQuantity required : 1 |
||||||
|
6 |
GU01415750 - PLAQUE D. More informationQuantity required : 1 |
||||||
|
7 |
GU37420105 - CHASSIS BRANCHEMENT DESPLAQUES More informationQuantity required : 1 |
||||||
|
9 |
GU30419601 - VIS SANS TETE More informationQuantity required : 1 |
||||||
|
10 |
GU92660112 - TIRANT More informationQuantity required : 1 |
||||||
|
11 |
GU98610540 - VIS More informationQuantity required : 1 |
||||||
|
12 |
GU98231030 - VIS M10X30 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/4/7/img/73547.jpg)
13 |
GU92630110 - ECROU M10X1,5 More informationQuantity required : 1 |
||||||
|
14 |
GU98072595 - VIS More informationQuantity required : 1 |
||||||
|
15 |
GU37202805 - PLAQUE FIX.BOITE V. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/7/img/133187.jpg)
16 |
GU98682420 - VIS TCEI M8X20 More informationQuantity required : 1 |
||||||
|
17 |
GU95004208 - RONDELLE More informationQuantity required : 1 |
||||||
|
18 |
GU92630508 - ECROU More informationQuantity required : 1 |
||||||
|
19 |
GU98072465 - VIS SP.65MM More informationQuantity required : 1 |
||||||
|
19 |
GU98072460 - VIS SP.60MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
20 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 1 |
||||||
|
21 |
GU01517700 - "DECALCO ""AQUILIA""" More informationQuantity required : 1 |
||||||
|
22 |
GU98612535 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/6/5/4/img/130654.jpg)
23 |
GU30217900 - RONDELLE 13X18X1,7 More informationQuantity required : 1 |
