Vehicle Exploded View - APRILIA CLIMBER 280 1990-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

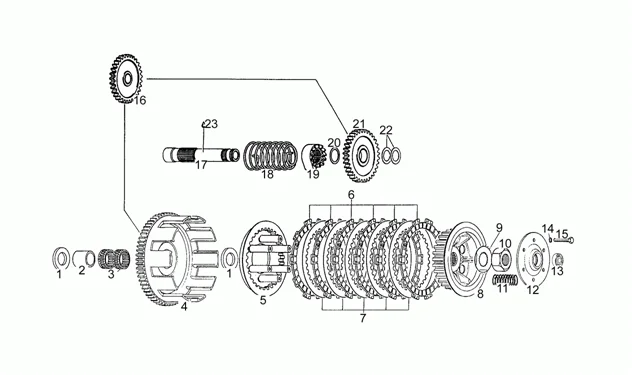

Moteur : 6 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/289/Climber_280_1990-1994_6.PNG)
1 |
AP0227600 - CALE EPAISSEUR More informationQuantity required : 2 |
||||||
|
3 |
AP0232652 - CAGE A AIGUILLE More informationQuantity required : 2 |
||||||
|
5 |
AP0259570 - PLATEAU A RESSORTS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/9/9/0/img/43990.jpg)
6 |
CLUTCH DISC- LINED "PIAGGIO GENUINE PART" APRILIA 125 AF1, CLASSIC, PEGASO, RS, TUONO -AP0259053- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/0/1/6/img/44016.jpg)
7 |
CLUTCH DISC- SMOOTH "PIAGGIO GENUINE PART" APRILIA 125 SX, RX, RS, AF1, CLASSIC, TUONO -AP0259559- More informationQuantity required : 5 |
||||||
|
9 |
AP0245320 - RONDELLE More informationQuantity required : 1 |
||||||
|
10 |
AP0242605 - ECROU M18X150 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/6/8/0/img/43680.jpg)
11 |
CLUTCH SPRING "PIAGGIO GENUINE PART" APRILIA 125 AF1, CLASSIC, PEGASO, RS, RX, SX -AP0239625- More informationQuantity required : 6 |
||||||
|
14 |
AP0945750 - RONDELLE FENDUE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/7/3/7/img/43737.jpg)
15 |
SCREW - FOR CLUTCH PLATE "PIAGGIO GENUINE PART" APRILIA125 RX, SX, MX, RS, CLASSIC, TUONO, PEGASO -AP0241770- More informationQuantity required : 6 |
||||||
|
17 |
AP0237932 - ARBRE DE KICK More informationQuantity required : 1 |
||||||
|
18 |
AP0239762 - RESSORT RAPPEL DE KICK More informationQuantity required : 1 |
||||||
|
22 |
AP0944461 - CALE More informationQuantity required : 1 |
||||||
|
22 |
AP0944468 - RACLEUR More informationQuantity required : 1 |
||||||
|
23 |
AP0297434 - LOCTITE ANTI SEIZE More informationQuantity required : 1 |
