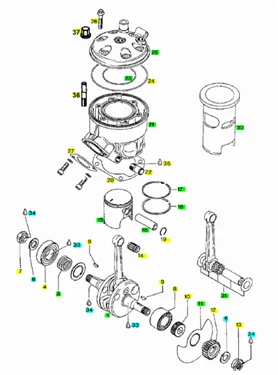

Moteur : 1 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/289/Climber_280_1990-1994_1.PNG)
3 |
AP0944583 - CALE VILO 30,4/40,5/0,1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/6/1/1/img/44611.jpg)
3 |
AP0944586 - CALE VILO 30,4/40,5/0,2 More informationQuantity required : 1 |
||||||
|
6 |
AP0945757 - RONDELLE More informationQuantity required : 2 |
||||||
|
8 |
AP0232750 - ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/7/9/0/img/43790.jpg)
9 |
TRANSMISSION KEY 4X5 "PIAGGIO GENUINE PART" APRILIA 125 RX, SX, RX, 1000 RSV-2, TUONO, CAPONORD -AP0246570- More informationQuantity required : 1 |
||||||
|
11 |
AP0224102 - DISQUE More informationQuantity required : 1 |
||||||
|
14 |
AP0932904 - CAGE A AIGUILLE More informationQuantity required : 1 |
||||||
|
15 |
AP0293905 - PISTON COMPLET More informationQuantity required : 1 |
||||||
|
16 |
AP0215200 - SEGMENT D*76 More informationQuantity required : 1 |
||||||
|
17 |
AP0915820 - SEGMENT D*76 More informationQuantity required : 1 |
||||||
|
18 |
AP0916135 - AXE DE PISTON CLIMBER More informationQuantity required : 1 |
||||||
|
19 |
AP0945735 - CLIPS More informationQuantity required : 1 |
||||||
|
22 |
AP0224090 - TUYAU More informationQuantity required : 1 |
||||||
|
23 |
AP0831792 - JOINT CULASSE=0831790 More informationQuantity required : 1 |
||||||
|
24 |
AP0831767 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
31 |
AP0292024 - KIT BIELLE TX/CLIMBER More informationQuantity required : 1 |
||||||
|
31 |
AP0295080 - BIELLE COMPLETE More informationQuantity required : 1 |
||||||
|
33 |
AP0297434 - LOCTITE ANTI SEIZE More informationQuantity required : 1 |
||||||
|
34 |
AP0899788 - LOCTITE VERTE More informationQuantity required : 1 |
||||||
|
35 |
AP0899785 - LOCTITE VIOLET More informationQuantity required : 1 |
