Vehicle Exploded View - APRILIA CLIMBER 280 1990-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

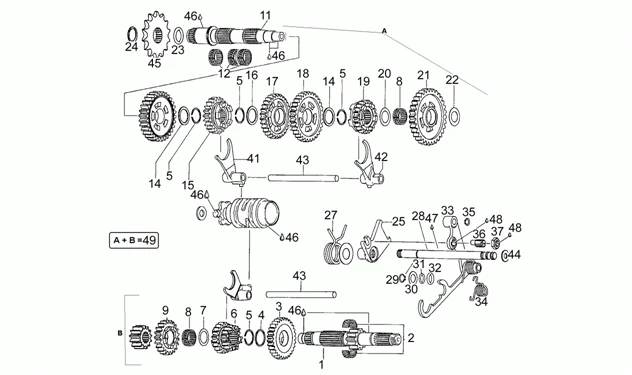

Moteur : 3 BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/289/Climber_280_1990-1994_3.PNG)
5 |
AP0245340 - CLIPS ARBRE BOITE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/5/3/8/img/43538.jpg)
12 |
ROLLER BEARING FOR CLUTCH "PIAGGIO GENUINE PART" APRILIA 125 AF1, CLASSIC, PEGASO, RS, TUONO -AP0259053- More informationQuantity required : 3 |
||||||
|
20 |
AP0944468 - RACLEUR More informationQuantity required : 1 |
||||||
|
22 |
AP0227430 - RACLEUR More informationQuantity required : 1 |
||||||
|
23 |
AP0430460 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/7/7/8/img/43778.jpg)
24 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO APRILIA 50-125 CC -AP0245650- More informationQuantity required : 1 |
||||||
|
27 |
AP0239640 - RESSORT DE KICK More informationQuantity required : 1 |
||||||
|
28 |
AP0237438 - AXE SELECTEUR CLIMBER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/4/9/9/img/44499.jpg)
30 |
AP0827261 - RACLEUR More informationQuantity required : 1 |
||||||
|
31 |
AP0430110 - JT TORIQUE More informationQuantity required : 1 |
||||||
|
32 |
AP0250400 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
35 |
AP0245330 - BAGUE SEEGER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/4/3/8/img/44438.jpg)
37 |
NUT - FOR CRANKSHAFT (12X1) "PIAGGIO GENUINE PART" APRILIA 125 AF1, PEGASO, RS 1998>1998 -AP0642051- More informationQuantity required : 1 |
||||||
|
44 |
AP0250440 - RONDELLE More informationQuantity required : 1 |
||||||
|
45 |
AP0236068 - PIGNON 11 DENTS More informationQuantity required : 1 |
||||||
|
46 |
AP0297434 - LOCTITE ANTI SEIZE More informationQuantity required : 1 |
||||||
|
47 |
AP0897330 - GRAISSE LITHIUM More informationQuantity required : 1 |
||||||
|
48 |
AP0899785 - LOCTITE VIOLET More informationQuantity required : 1 |
