Vehicle Exploded View - APRILIA CLIMBER 280 1990-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

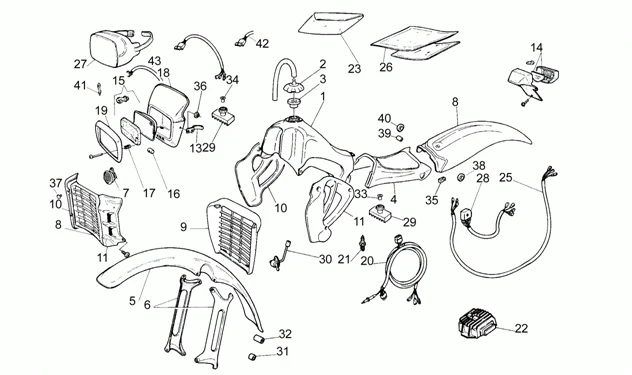

Chassis : 8 CARROSSERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/289/Climber_280_1990-1994_8.PNG)
17 |
AP8121023 - RESSORT REGLAGE PHARE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/9/8/img/47498.jpg)
21 |
STOP LIGHT SWITCH - ON REAR MASTER CYLINDER "PIAGGIO GENUINE PART" APRILIA 50-125 RS, RX, SX, MX, TUONO -AP8124479- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/3/img/71403.jpg)
29 |
AP8120557 - CAOUTCHOUC RESERV. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
35 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
36 |
AP8121075 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
|
37 |
AP8120317 - RIVET EN PLASTIQUE NOIR More informationQuantity required : 4 |
||||||
|
39 |
AP8221043 - DOUILLE ENTRETOISE More informationQuantity required : 2 |
