Vehicle Exploded View - APRILIA CLASSIC 50 1992-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

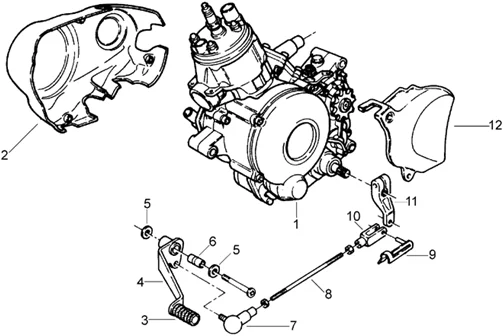

Moteur : 29.25 MOTEUR II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/287/Classic_50_1992-1999_29.25.PNG)
1 |
AP8276002 - COPERCHIO VOLANO V.GRIGIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/3/img/72273.jpg)
3 |
GEARBOX SELECTOR RUBBER "PIAGGIO GENUINE PART" APRILIA 50-125 RS, CLASSIC, 125 FUTURA, 600-650 PEGASO/MOTO-GUZZI 750 BREVA -AP8220189- More informationQuantity required : 1 |
||||||
|
5 |
AP8220299 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
6 |
AP8221125 - PIVOT LEVIER .B.VITES. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/5/img/72185.jpg)
7 |
GEARBOX SELECTOR BALL JOINT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI ET APRILIA -AP8210007- More informationQuantity required : 1 |
||||||
|
8 |
AP8232643 - TIGE RENVOI BO?TE DE VITESSES; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/2/9/img/72129.jpg)
9 |
CLIP FOR REAR MASTER CYCLINDER "PIAGGIO GENUINE PART" COMMUN A LA GAMME MOTO APRILIA/MOTO-GUZZI -AP8201301- More informationQuantity required : 1 |
||||||
|
11 |
AP8232656 - BIELLETTE RENV. BOITE VITES.; More informationQuantity required : 1 |
