Vehicle Exploded View - APRILIA CLASSIC 50 1992-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

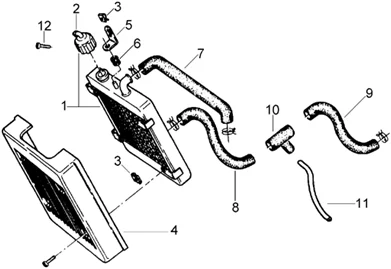

Chassis : 28.21 RADIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/287/Classic_50_1992-1999_28.21.PNG)
1 |
AP8201609 - RADIATEUR AVEC BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/5/7/img/55357.jpg)
2 |
COOLANT RADIATOR CAP "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, 125-250 SCARABEO, LEONARDO, 400-500 SCARABEO, ATLANTIC -AP8201463- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
6 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/8/1/img/56881.jpg)
10 |
"TEE" UNION "PIAGGIO GENUINE PART" APRILIA 50 CLASSIC, RS, SX, RX -AP8220415- More informationQuantity required : 1 |
||||||
|
11 |
AP8220450 - TUYAU A TEXTURE EN CAOUTCHOUC; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
12 |
AP8152277 - VIS BRIDE More informationQuantity required : 1 |
All the exploded views of this vehicle
-
