Vehicle Exploded View - APRILIA CLASSIC 50 1992-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

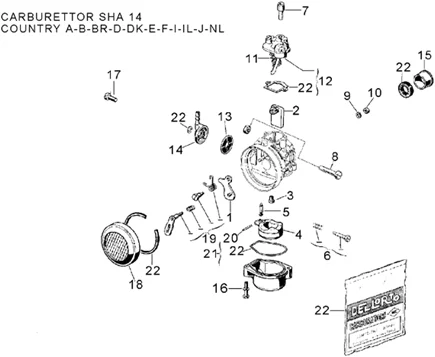

Moteur : 29.55 CARBURATEUR II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/287/Classic_50_1992-1999_29.55.PNG)
1 |
AP8222663 - SOUPAPE AIR More informationQuantity required : 0 |
||||||
|
2 |
AP8222654 - SOUPAPE GAZ More informationQuantity required : 0 |
||||||
|
2 |
AP8222655 - SOUPAPE GAZ More informationQuantity required : 0 |
||||||
|
3 |
AP8222638 - JET MAXIMUM More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/7/img/65997.jpg)
5 |
CARB FLOAT NEEDLE VALVE "PIAGGIO GENUINE PART" 50 CIAO/GILERA 50 GSM, EAGLET/APRILIA 50 CLASSIC, MX -247653- More informationQuantity required : 0 |
||||||
|
6 |
AP8222650 - KIT VIS REG.SOUPAPE GAS More informationQuantity required : 0 |
||||||
|
7 |
AP8222631 - VIS TENDEUR DE FIL More informationQuantity required : 0 |
||||||
|
8 |
AP8222652 - KIT VIS SERR.MANCHON More informationQuantity required : 0 |
||||||
|
10 |
AP8222660 - ECROU ARBRE AIR More informationQuantity required : 0 |
||||||
|
11 |
AP8222644 - RESSORT RAPPEL SOUP.GAZ More informationQuantity required : 0 |
||||||
|
12 |
AP8222676 - COUVERCLE SOUPAPE More informationQuantity required : 0 |
||||||
|
14 |
AP8222659 - PIPETTE RACC. TUYAU ESSENCE More informationQuantity required : 0 |
||||||
|
16 |
AP8222634 - VIS FIX. BAC More informationQuantity required : 0 |
||||||
|
17 |
AP8222645 - VIS FIX.PIPETTE More informationQuantity required : 0 |
||||||
|
19 |
AP8222653 - KIT ARBRE COM.SOUPAPE AIR More informationQuantity required : 0 |
||||||
|
21 |
AP8222635 - CUVE More informationQuantity required : 0 |
||||||
|
22 |
AP8222679 - SACHET JOINTS More informationQuantity required : 0 |
