Vehicle Exploded View - APRILIA CLASSIC 50 1992-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

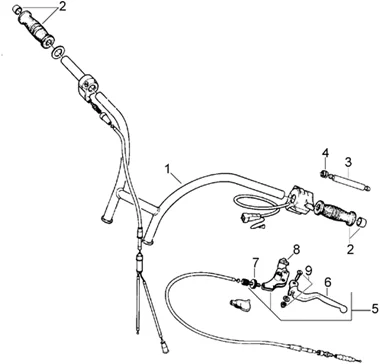

Chassis : 28.18 COMMANDES I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/287/Classic_50_1992-1999_28.18.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/5/8/img/71358.jpg)
2 |
AP8118425 - COUPLE MANETTES; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/6/4/img/97064.jpg)
4 |
AP8120223 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
5 |
AP8218075 - LEVIER EMBRAYAGE COMPLET; More informationQuantity required : 1 |
||||||
|
5 |
AP8218256 - LEVIER EMBRAYAGE COMPLET; More informationQuantity required : 1 |
||||||
|
6 |
AP8218326 - LEVIER EMBRAYAGE NU POLI; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/8/7/img/46287.jpg)
7 |
CLUTCH LEVER ADJUSTER "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, MX, PEGASO, EUROPA, TUAREG, CLASSIC, AF1 -AP8118104- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/1/7/img/56617.jpg)
8 |
HALF CLAMP - FOR CLUTCH LEVER "PIAGGIO GENUINE PART" APRILIA 50 CLASSIC, 125-250 RS -AP8218077- More informationQuantity required : 1 |
