Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California EV 1100 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

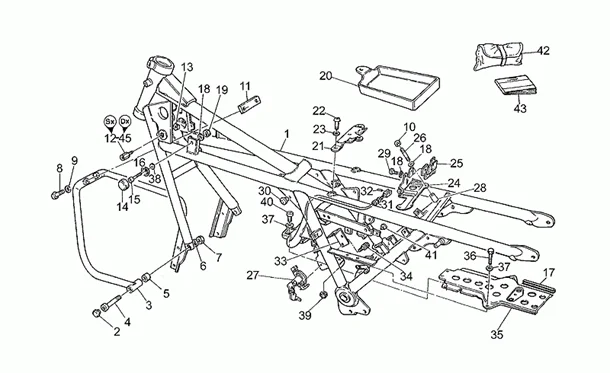

Chassis : 33.29 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/477/California_EV_1100_1997-2000_33.29.PNG)
2 |
GU93180216 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
3 |
FRONT CRASH BAR "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA -GU30450260- More informationQuantity required : 1 |
||||||
|
4 |
GU98621650 - VIS M12X50 More informationQuantity required : 2 |
||||||
|
5 |
GU91181210 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
6 |
GU95022112 - RONDELLE EVENT. More informationQuantity required : 2 |
||||||
|
7 |
GU92602312 - ECROU More informationQuantity required : 2 |
||||||
|
8 |
GU98230845 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
9 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
|
10 |
GU92602206 - ECROU More informationQuantity required : 2 |
||||||
|
11 |
GU17451750 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
12 |
GU03469200 - GOUJON More informationQuantity required : 2 |
||||||
|
13 |
GU92660601 - ECROU EN CAGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/8/6/img/131886.jpg)
14 |
FRAME PAD "PIAGGIO GENUINE PARTS" COMMON FOR MOTO-GUZZI RANGE -GU39103400- More informationQuantity required : 2 |
||||||
|
15 |
GU98822316 - VIS More informationQuantity required : 2 |
||||||
|
16 |
GU391035005 - DISQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/3/3/4/img/101334.jpg)
17 |
GU00823931080 - GASKET PVC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
18 |
GU61013800 - RONDELLE SPECIALE More informationQuantity required : 6 |
||||||
|
19 |
GU92602206 - ECROU More informationQuantity required : 2 |
||||||
|
21 |
GU304613605 - PLAQUE More informationQuantity required : 1 |
||||||
|
22 |
GU98230816 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
23 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 2 |
||||||
|
24 |
GU30462360 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/7/4/6/img/130746.jpg)
25 |
SADDLE LOCK "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA -GU30462060- More informationQuantity required : 1 |
||||||
|
26 |
GU96506051 - VIS SANS TETE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/8/7/6/img/100876.jpg)
27 |
LOCK KIT- "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA -981069- More informationQuantity required : 1 |
||||||
|
29 |
GU98054312 - VIS More informationQuantity required : 2 |
||||||
|
30 |
GU93180080 - BOUCHON More informationQuantity required : 2 |
||||||
|
31 |
GU30462160 - TRANSMISSION DECROCHEMENT SELL More informationQuantity required : 1 |
||||||
|
32 |
GU95522508 - GOUPILLE More informationQuantity required : 1 |
||||||
|
33 |
GU30463260 - BRIDE More informationQuantity required : 1 |
||||||
|
34 |
GU66468115 - VIS A ARRACHEMENT More informationQuantity required : 2 |
||||||
|
35 |
GU29418360 - PLAQUE More informationQuantity required : 1 |
||||||
|
36 |
GU98054416 - VIS M8X16 More informationQuantity required : 3 |
||||||
|
37 |
GU95004208 - RONDELLE More informationQuantity required : 7 |
||||||
|
38 |
GU95000206 - RONDELLE More informationQuantity required : 1 |
||||||
|
39 |
GU92630508 - ECROU More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/7/img/133187.jpg)
40 |
GU98682420 - VIS TCEI M8X20 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/8/0/img/129680.jpg)
41 |
GU19705900 - TAMPON More informationQuantity required : 3 |
||||||
|
42 |
GU03909960 - TROUSSE A OUTILS More informationQuantity required : 1 |
||||||
|
43 |
GU03900020 - MANUEL INSTRUCTIONS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/7/1/0/img/102710.jpg)
45 |
GU03469201 - COLONNETTA DI FISSAGGIO More informationQuantity required : 1 |
