Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California EV 1100 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

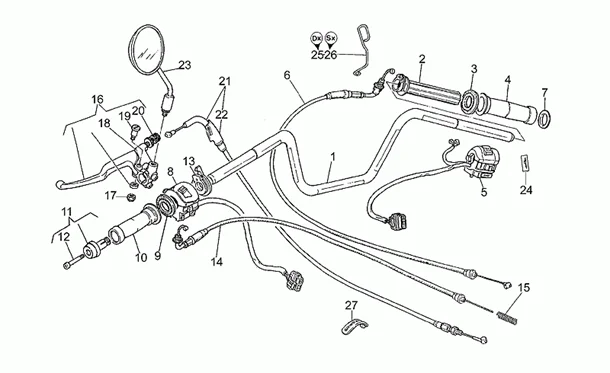

Chassis : 33.16 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/477/California_EV_1100_1997-2000_33.16.PNG)
1 |
Guidon |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/5/4/img/71354.jpg)
2 |
TRANSMISSION THROTTLE CABLE WITHOUT HAND GRIP "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 SPORT, 1100 CALIFORNIA, 750 NEVADA, 1000 DAYTONA/APRILIA 650 PEGASO, 50 RS 1999>2005 -AP8118316- More informationQuantity required : 1 |
||||||
|
2 |
Commande gaz |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/0/3/4/img/130034.jpg)
3 |
GU27603620 - BAGUE More informationQuantity required : 1 |
||||||
|
4 |
GU27603520 - POIGNEE DR. More informationQuantity required : 1 |
||||||
|
5 |
Deviateur feux dte |
||||||
|
5 |
Deviateur feux dte |
||||||
|
5 |
Déviateur feux dte |
||||||
|
5 |
GU30738873 - DEVIATEUR FEUX DTE More informationQuantity required : 1 |
||||||
|
6 |
Câble gaz |
||||||
|
6 |
Cable gaz |
||||||
|
6 |
GU97011801000 - CSSBLE GAZ INOX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/2/7/img/130427.jpg)
7 |
GU29606970 - RONDELLE NYLON More informationQuantity required : 1 |
||||||
|
8 |
GU30738060 - DEVIATEUR FEUX GCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/0/3/2/img/130032.jpg)
9 |
GU27603120 - BAGUE More informationQuantity required : 1 |
||||||
|
10 |
GU27603020 - POIGNEE GC. More informationQuantity required : 1 |
||||||
|
11 |
Masse antivibratile guidon |
||||||
|
12 |
GU98662435 - VIS More informationQuantity required : 1 |
||||||
|
13 |
Commande starter |
||||||
|
14 |
Câble starter |
||||||
|
14 |
GU97011802000 - CABLE STARTER INOX More informationQuantity required : 1 |
||||||
|
15 |
GU94321070 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/8/6/2/img/130862.jpg)
16 |
COMPLETE CLUTCH HANDLE "PIAGGIO GENUINE PART" MOTO-GUZZI 350-750 NEVADA, V75, 1100 CALIFORNIA 1994>2001 -GU30605560- More informationQuantity required : 1 |
||||||
|
17 |
GU92602206 - ECROU More informationQuantity required : 1 |
||||||
|
18 |
GU30601800 - SUPP.DU LEVIER NUDE L'EMBRAY. More informationQuantity required : 1 |
||||||
|
19 |
|
||||||
|
20 |
AP8118348 - REGLAGE LEVIER EMBRAYAGE; More informationQuantity required : 1 |
||||||
|
20 |
AP8118348 - REGLAGE LEVIER EMBRAYAGE; More informationQuantity required : 1 |
||||||
|
21 |
GU03093000 - CAVO FRIZIONE More informationQuantity required : 1 |
||||||
|
21 |
GU97011803000 - CABLE EMBRAYAGE INOX More informationQuantity required : 1 |
||||||
|
22 |
GU30093860 - SOUFFLET More informationQuantity required : 1 |
||||||
|
23 |
Miroir rétroviseur |
||||||
|
23 |
GU31769465 - MIROIR RETROVISEUR More informationQuantity required : 2 |
||||||
|
24 |
"Décalco ""Aquila""" |
||||||
|
25 |
GU03669000 - OEILLETDROIT GUIDE DESTRANS. More informationQuantity required : 1 |
||||||
|
26 |
GU03669001 - OEILLETGAUCHE GUIDE DESTRANS. More informationQuantity required : 1 |
||||||
|
27 |
GU03609600 - COLLIER L36 MM More informationQuantity required : 3 |
