Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California EV 1100 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

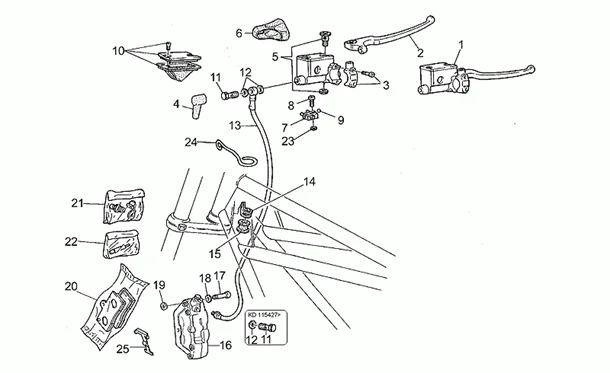

Chassis : 33.21 MAÎT. CYL. FREIN AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/477/California_EV_1100_1997-2000_33.21.PNG)
1 |
AP8113620 - MA?T. CYL. FREIN AV More informationQuantity required : 1 |
||||||
|
2 |
GU30605680 - LEVIER FREIN More informationQuantity required : 1 |
||||||
|
3 |
AP8113203 - CAVALIER LEVIER FREIN More informationQuantity required : 1 |
||||||
|
4 |
GU39663801 - CAPUCHON More informationQuantity required : 1 |
||||||
|
5 |
GU27604815 - PIVOT More informationQuantity required : 1 |
||||||
|
6 |
GU27663615 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/6/5/img/130965.jpg)
7 |
GU30749860 - MINIRUPTEUR More informationQuantity required : 1 |
||||||
|
8 |
GU98200214 - VIS More informationQuantity required : 2 |
||||||
|
9 |
GU92295708 - BILLE More informationQuantity required : 1 |
||||||
|
10 |
GU27661115 - COUVERCLE POMPE More informationQuantity required : 1 |
||||||
|
11 |
GU95990028 - VIS TUYAU HUILE * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
12 |
GU25656100 - GARNITURE More informationQuantity required : 2 |
||||||
|
13 |
GU03657100 - TUYAU FLEXIBLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/4/4/img/128244.jpg)
13 |
FRONT BRAKE HOSE "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA -GU03657101 More informationQuantity required : 1 |
||||||
|
14 |
GU03658400 - COLLIER 10MM More informationQuantity required : 1 |
||||||
|
15 |
GU03658201 - BAGUE More informationQuantity required : 1 |
||||||
|
15 |
GU17658260 - BAGUE More informationQuantity required : 1 |
||||||
|
16 |
GU01652330 - PINZA FRENO ANT.DX ORO More informationQuantity required : 1 |
||||||
|
16 |
GU03652200 - ETRIER FREIN AV D.GRIS More informationQuantity required : 1 |
||||||
|
16 |
GU30652302 - MACHOIRE FREIN AV D OR More informationQuantity required : 1 |
||||||
|
17 |
GU98622530 - VIS More informationQuantity required : 2 |
||||||
|
17 |
GU98623530 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
18 |
OIL PUMP SHAFT WASHER (10,5X16X1) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -AP8152220- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/3/img/132753.jpg)
18 |
GU95129180 - RONDELLE 10,5X18X0,8 More informationQuantity required : 2 |
||||||
|
19 |
GU95100332 - RONDELLE D'APPUI 0,5 MM More informationQuantity required : 1 |
||||||
|
19 |
GU95100333 - RONDELLE D'APPUI 0,8 MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/7/img/73417.jpg)
20 |
BRAKE PADS - "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V-7 FRONT, NEVADA FRONT, BREVA FRONT, 850 GRISO FRONT, BREVA FRONT, 1100 BREVA FRONT, CALIFORNIA FRONT, 1200 GRISO FRONT, NORGE FRONT, STELVIO FRONT, BREVA FRONT (PAIR) -GU01654630- More informationQuantity required : 2 |
||||||
|
20 |
GU30654602 - PLAQUETTES-PAIRE More informationQuantity required : 2 |
||||||
|
21 |
GU01659230 - SPURGO+CAPPUCCIO More informationQuantity required : 2 |
||||||
|
21 |
GU30659200 - PURGE+CAPUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/2/6/img/101926.jpg)
22 |
PIN+CALIPER SPRINGS "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU01659130- More informationQuantity required : 2 |
||||||
|
22 |
GU30659102 - KIT PLAQUETTES More informationQuantity required : 2 |
||||||
|
23 |
GU92601002 - ECROU More informationQuantity required : 2 |
||||||
|
24 |
GU03659700 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
25 |
GU01659131 - MOLLA More informationQuantity required : 1 |
