Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California EV 1100 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

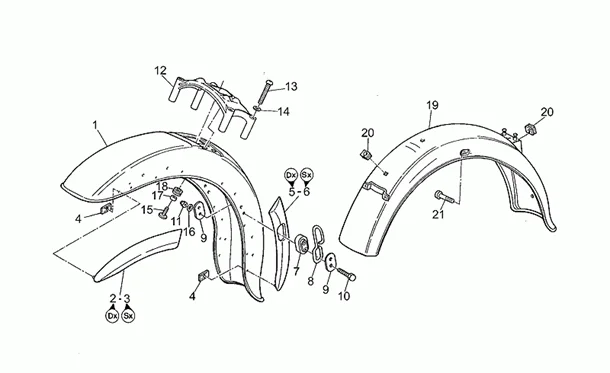

Chassis : 33.18 GARDE-BOUE AV./ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/477/California_EV_1100_1997-2000_33.18.PNG)
1 |
GU03434300 - PARAFANGO ANT.GREZZO More informationQuantity required : 1 |
||||||
|
1 |
Garde-boue Av. |
||||||
|
1 |
Garde-boue Av. |
||||||
|
1 |
Garde-boue Av. |
||||||
|
1 |
Garde-boue Av. |
||||||
|
1 |
|
||||||
|
1 |
Garde-boue Av. |
||||||
|
1 |
Garde-boue Av. |
||||||
|
1 |
GU89000347 - GARDE-BOUE AV. More informationQuantity required : 1 |
||||||
|
2 |
GU03435200 - PROFILO ANT.DX CROMATO More informationQuantity required : 1 |
||||||
|
3 |
GU03435400 - PROFILO ANT.SX CROMATO More informationQuantity required : 1 |
||||||
|
4 |
GU39922200 - CLIPS More informationQuantity required : 28 |
||||||
|
5 |
GU03435300 - PROFILO POST.DX CROMATO More informationQuantity required : 1 |
||||||
|
6 |
GU03435500 - PROFILO POST.SX CROMATO More informationQuantity required : 1 |
||||||
|
7 |
GU03436400 - GOMMINO More informationQuantity required : 2 |
||||||
|
8 |
GU03436500 - GUIDACAVO More informationQuantity required : 2 |
||||||
|
9 |
GU03436300 - PIASTRINA More informationQuantity required : 4 |
||||||
|
10 |
GU98052225 - VIS More informationQuantity required : 4 |
||||||
|
11 |
GU92781053 - ECROU BORGNE More informationQuantity required : 4 |
||||||
|
12 |
GU03436600 - PLAQUE DE STABILISATION More informationQuantity required : 1 |
||||||
|
13 |
GU98230851 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
14 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/7/2/img/132972.jpg)
15 |
GU98230622 - VIS More informationQuantity required : 4 |
||||||
|
16 |
GU66478610 - RONDELLE NYLON 6X17X1 More informationQuantity required : 4 |
||||||
|
17 |
GU30576100 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
18 |
GU91551010 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
19 |
Garde-boue Ar. |
||||||
|
19 |
GU03437002 - PARAFANGO POSTERIORE More informationQuantity required : 1 |
||||||
|
19 |
Garde-boue Ar. |
||||||
|
19 |
Garde-boue Ar. |
||||||
|
19 |
GU03437005 - PARAFANGO POSTERIORE More informationQuantity required : 1 |
||||||
|
19 |
GU304370602 - GARDE-BOUE AR. More informationQuantity required : 1 |
||||||
|
19 |
Garde-boue Ar. |
||||||
|
19 |
Garde-boue Ar. |
||||||
|
20 |
GU91551099 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
21 |
GU03439000 - VITE More informationQuantity required : 2 |
