Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Alum Tit PI Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

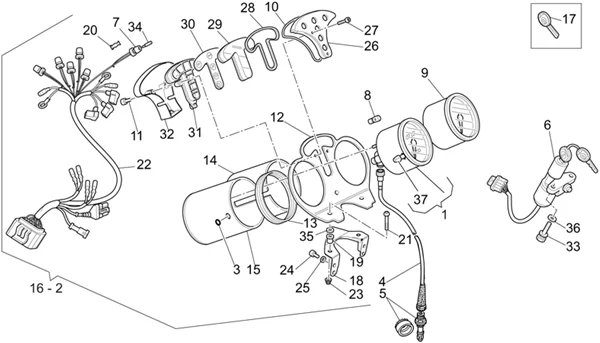

Chassis : 33.38 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/474/California_Alum_Tit_PI_Cat_1100_2003-2004_33.38.PNG)
1 |
GU03761570 - COMPTEUR KILOMETRIQUE More informationQuantity required : 1 |
||||||
|
2 |
GU03760076 - TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
3 |
GU91551168 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/3/4/1/img/128341.JPG)
4 |
GU03760465 - CABLE COMPTEUR KM More informationQuantity required : 1 |
||||||
|
5 |
GU03762550 - RENVOI COMPTEUR KM More informationQuantity required : 1 |
||||||
|
6 |
GU01782500 - BLOCCHETTO AVVIAMENTO-BLOCC. More informationQuantity required : 1 |
||||||
|
7 |
GU02768600 - PORTALAMPADA More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
8 |
294131 - AMPOULE 12V 3W More informationQuantity required : 2 |
||||||
|
9 |
884171 - CONTAGIRI CALIFORNIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/3/4/7/img/128347.jpg)
10 |
GU03762370 - JOINT More informationQuantity required : 1 |
||||||
|
11 |
GU98872110 - VIS More informationQuantity required : 3 |
||||||
|
12 |
GU02764000 - BASE SUPPORTO STRUMENTI More informationQuantity required : 1 |
||||||
|
13 |
GU02762301 - GOMMA More informationQuantity required : 2 |
||||||
|
14 |
GU03761970 - SUPPORT COMPTE-TOURS More informationQuantity required : 1 |
||||||
|
15 |
GU03762070 - SUPPORT TACHY. More informationQuantity required : 1 |
||||||
|
16 |
GU03760074 - TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
17 |
GU30735500 - CLE PAS CANTEE BRUT More informationQuantity required : 1 |
||||||
|
18 |
GU01766031 - SUPPORTO CRUSCOTTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/1/img/73551.jpg)
19 |
SILENTBLOC "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU93222023- More informationQuantity required : 3 |
||||||
|
20 |
GU93400012 - PARTIE TERMINALE DOUILLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/0/8/1/img/126081.jpg)
21 |
GU98370609 - VIS More informationQuantity required : 3 |
||||||
|
22 |
GU03747270 - CABLAGE TABLEAU DE BORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/1/img/65941.jpg)
23 |
219277 - BOULON More informationQuantity required : 3 |
||||||
|
24 |
GU98692318 - VIS M6X18 More informationQuantity required : 4 |
||||||
|
25 |
GU95008306 - RONDELLE 6,4X12X1,2 More informationQuantity required : 4 |
||||||
|
26 |
GU03766265 - COUVERCLE PORTE-TEMOINS GRIS More informationQuantity required : 1 |
||||||
|
27 |
GU98872120 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/4/2/img/102342.jpg)
28 |
GU02768200 - GUARNIZIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/4/3/img/102343.jpg)
29 |
PROTECTIVE FOAM STRIP FOR DASHBOARD LIGHTS "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA, V11, 750 NEVADA -GU02768400- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/3/6/1/img/128361.jpg)
30 |
PANEL WITH LENSES "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA, 750 NEVADA, V11 -GU03781150- More informationQuantity required : 1 |
||||||
|
31 |
GU02766300 - SCATOLA PORTASPIE More informationQuantity required : 1 |
||||||
|
32 |
GU03766570 - COUVERCLE INFERIEURE More informationQuantity required : 1 |
||||||
|
33 |
GU97260415 - VIS SPECIALE M8X15 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/0/img/65760.jpg)
34 |
LIGHT BULB - INDICATOR LIGHT 12V-1/2W "PIAGGIO GENUINE PART" BEVERLY, X7, LIBERTY, ZIP, VESPA GTS/MOTO-GUZZI -164634- More informationQuantity required : 6 |
||||||
|
35 |
GU95021206 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.JPG)
36 |
GU95008208 - RONDELLE 8,4X15X1,8 More informationQuantity required : 2 |
||||||
|
37 |
GU03762870 - POUSSOIR RAZ More informationQuantity required : 1 |
