Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Alum Tit PI Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

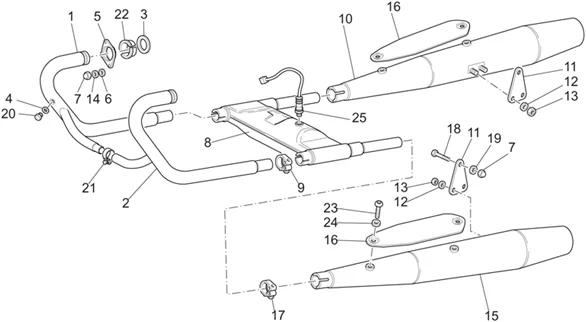

Chassis : 33.09 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/474/California_Alum_Tit_PI_Cat_1100_2003-2004_33.09.PNG)
1 |
GU03120965 - TUBO SCARICO DX More informationQuantity required : 1 |
||||||
|
2 |
GU03120966 - TUBO SCARICO SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/5/0/1/img/125501.jpg)
3 |
EXHAUST GASKET- ON HEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU90718370- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/5/7/4/img/130574.jpg)
4 |
GU30109330 - JOINT More informationQuantity required : 2 |
||||||
|
5 |
GU01121030 - FLANGIA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
6 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/0/6/img/69806.jpg)
7 |
860651 - ECROU More informationQuantity required : 6 |
||||||
|
8 |
GU03123900 - CAMERA ESPANSIONE More informationQuantity required : 1 |
||||||
|
8 |
GU03123955 - CAMERA ESPANSIONE More informationQuantity required : 1 |
||||||
|
9 |
GU03123470 - FASCETTA More informationQuantity required : 2 |
||||||
|
10 |
GU03123000 - SILENZIATORE DX CROMATO More informationQuantity required : 1 |
||||||
|
10 |
884146 - SILENZIATORE DX More informationQuantity required : 1 |
||||||
|
11 |
GU03128601 - PIASTRA DX/SX More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.jpg)
12 |
GU95008208 - RONDELLE 8,4X15X1,8 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/1/9/img/132519.jpg)
13 |
GU92640508 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/6/img/132666.jpg)
14 |
GU95005308 - RONDELLE More informationQuantity required : 4 |
||||||
|
15 |
GU03122900 - SILENZIATORE SX CROMATO More informationQuantity required : 1 |
||||||
|
15 |
GU03122965 - SILENZIATORE SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/1/1/8/5/img/141185.jpg)
16 |
EXHAUST PROTECTION "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, NEVADA, 1100 CALIFORNIA -8837045 More informationQuantity required : 2 |
||||||
|
17 |
GU03123471 - FASCETTA More informationQuantity required : 2 |
||||||
|
18 |
GU98082435 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/4/6/img/110646.jpg)
19 |
658837 - RONDELLE More informationQuantity required : 2 |
||||||
|
20 |
GU98110007 - BOUCHON More informationQuantity required : 2 |
||||||
|
21 |
GU03122571 - FASCETTA More informationQuantity required : 1 |
||||||
|
22 |
GU03121230 - SEMICONO More informationQuantity required : 4 |
||||||
|
23 |
GU98210610 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/8/img/71418.jpg)
24 |
AP8120870 - RONDELLE ISOLANTE More informationQuantity required : 4 |
||||||
|
25 |
GU32727010 - SONDE LAMDA More informationQuantity required : 1 |
