Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Alum Tit PI Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

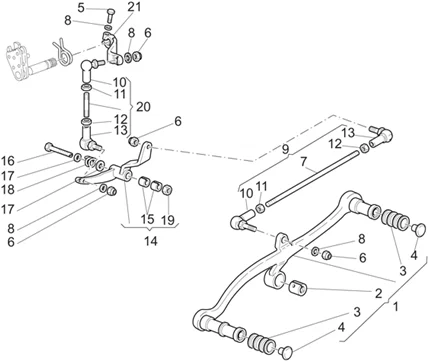

Chassis : 33.16 LEVIER BOITE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/474/California_Alum_Tit_PI_Cat_1100_2003-2004_33.16.PNG)
1 |
GU03250860 - LEVA CAMBIO CPL. More informationQuantity required : 1 |
||||||
|
2 |
GU03678160 - BAGUE More informationQuantity required : 1 |
||||||
|
4 |
GU23943510 - BOUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/2/img/133182.jpg)
5 |
GU98682322 - VIS M6X22 More informationQuantity required : 1 |
||||||
|
6 |
GU92630707 - ECROU M6X1 More informationQuantity required : 4 |
||||||
|
7 |
GU03257731 - TIRANTE NUDO COM CAMB STONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
8 |
GU03013800 - ROS EL OND IX 6.4X12X0.5 More informationQuantity required : 5 |
||||||
|
9 |
GU03257633 - TIRANTE CPL. More informationQuantity required : 1 |
||||||
|
10 |
GU32258010 - ROTULE G More informationQuantity required : 2 |
||||||
|
11 |
GU03256800 - DADO M6 More informationQuantity required : 2 |
||||||
|
12 |
GU92609206 - ECROU M6 More informationQuantity required : 2 |
||||||
|
13 |
GU32258110 - ROTULE More informationQuantity required : 2 |
||||||
|
14 |
GU30256960 - LEVIER More informationQuantity required : 1 |
||||||
|
15 |
GU30252060 - BAGUE More informationQuantity required : 2 |
||||||
|
16 |
GU30252360 - VIS More informationQuantity required : 1 |
||||||
|
17 |
GU95100409 - RONDELLE More informationQuantity required : 2 |
||||||
|
18 |
GU94322185 - RESSORT More informationQuantity required : 1 |
||||||
|
19 |
GU92609512 - ECROU More informationQuantity required : 1 |
||||||
|
20 |
GU03257801 - TIRANTE CPL. More informationQuantity required : 1 |
||||||
|
21 |
GU03258250 - LEVA More informationQuantity required : 1 |
