Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Alum Tit PI Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

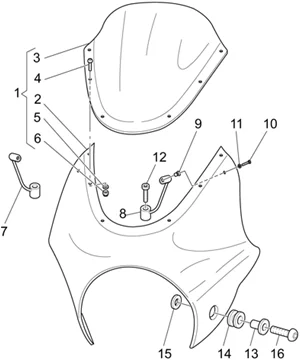

Chassis : 33.28 COUPOLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/474/California_Alum_Tit_PI_Cat_1100_2003-2004_33.28.PNG)
2 |
GU01575442 - CARENAGE BRUT More informationQuantity required : 1 |
||||||
|
2 |
GU03575465 - COUPOLE GRISE More informationQuantity required : 1 |
||||||
|
3 |
GU01577242 - PARABREZZA More informationQuantity required : 1 |
||||||
|
4 |
GU98358108 - VIS More informationQuantity required : 6 |
||||||
|
5 |
GU95007204 - RONDELLE More informationQuantity required : 12 |
||||||
|
6 |
GU92781040 - ECROU More informationQuantity required : 6 |
||||||
|
7 |
GU03577565 - SUPPORT DROITE More informationQuantity required : 1 |
||||||
|
8 |
GU03578665 - SUPPORT GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/9/2/img/132592.jpg)
9 |
GU93231605 - DOUILLE ANTI VIBRATION More informationQuantity required : 2 |
||||||
|
10 |
GU98370515 - VIS More informationQuantity required : 2 |
||||||
|
11 |
GU30577800 - RONDELLE NYLON 5,5X12X1 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/6/2/img/133162.jpg)
12 |
GU98680450 - VIS M8X50 More informationQuantity required : 2 |
||||||
|
13 |
GU91120806 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
14 |
GU01573940 - GOMMINO More informationQuantity required : 2 |
||||||
|
15 |
GU95100218 - RONDELLE More informationQuantity required : 2 |
||||||
|
16 |
GU98370831 - VIS TBEI M8X30 More informationQuantity required : 2 |
