Vehicle Exploded View - APRILIA ATLANTIC 500 Sprint 2005-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

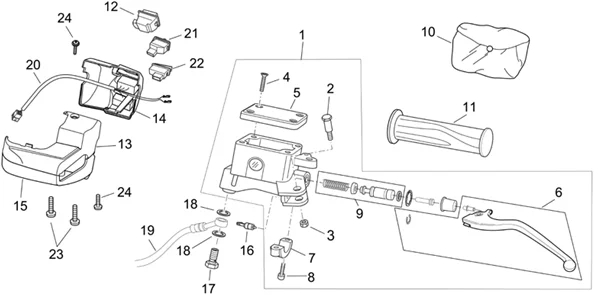

Chassis : 28.17 COMMANDES GCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/242/Atlantic_500_Sprint_2005-2008_28.17.PNG)
1 |
REAR BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" APRILIA125 SCARABEO -AP8133558- More informationQuantity required : 1 |
||||||
|
1 |
AP8133733 - POMPA FRENO POST.SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/6/img/71576.jpg)
2 |
AP8125757 - VIS LEVIER More informationQuantity required : 1 |
||||||
|
2 |
AP8213584 - VITE FISSAGGIO LEVA More informationQuantity required : 1 |
||||||
|
3 |
AP8213298 - ECROU More informationQuantity required : 1 |
||||||
|
3 |
AP8213585 - DADO More informationQuantity required : 1 |
||||||
|
4 |
AP8113859 - VIS COUVERCLE POMPE; More informationQuantity required : 4 |
||||||
|
4 |
AP8133807 - VITE COPERCHIO POMPA More informationQuantity required : 4 |
||||||
|
5 |
AP8113860 - COUVERCLE POMPE; More informationQuantity required : 1 |
||||||
|
5 |
858492 - COUVERCLE POMPE More informationQuantity required : 1 |
||||||
|
6 |
AP8118641 - LEVIER FREIN More informationQuantity required : 1 |
||||||
|
6 |
AP8133809 - LEVA FRENO More informationQuantity required : 1 |
||||||
|
7 |
AP8113637 - CAVALIER LEVIER FREIN More informationQuantity required : 1 |
||||||
|
7 |
AP8213586 - CAVALLOTTO LEVA FRENO More informationQuantity required : 1 |
||||||
|
8 |
AP8213299 - VIS CALOTTE More informationQuantity required : 2 |
||||||
|
8 |
AP8213582 - VITE CAPPELLOTTO More informationQuantity required : 2 |
||||||
|
9 |
AP8113861 - PISTON CPL.; More informationQuantity required : 1 |
||||||
|
10 |
MAINTENANCE KIT- FOR REAR BRAKE CALIPER "PIAGGIO GENUINE PART" APRILIA125 SCARABEO -AP8113862- More informationQuantity required : 1 |
||||||
|
10 |
AP8133810 - KIT REVISIONE POMPA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/8/3/img/46383.jpg)
11 |
GRIPS(PAIR) "PIAGGIO GENUINE PART" APRILIA 125-250-300-400-500 ATLANTIC -AP8118656- More informationQuantity required : 1 |
||||||
|
12 |
AP8124622 - DEVIATEUR FEUX More informationQuantity required : 1 |
||||||
|
13 |
AP8158933 - COQUE SUP.G; More informationQuantity required : 1 |
||||||
|
14 |
AP8158898 - LOG.COMMANDES EL.G NOIR; More informationQuantity required : 1 |
||||||
|
15 |
AP8158931 - COQUE INFERIEURE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
16 |
STOP LAMP SWITCH "PIAGGIO GENUINE PART" 125-500 MP3, X10, X-EVO, BEVERLY, GAMME VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO -642032- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
17 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
18 |
AP8113004 - RONDELLE More informationQuantity required : 2 |
||||||
|
19 |
AP8133533 - TUYAU FREIN ARRIERE; More informationQuantity required : 1 |
||||||
|
20 |
642991 - CABLAGE CLIGNOTANTS G; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/1/6/img/56316.jpg)
21 |
TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" COMMON TO THE 50CC APRILIA SCOOTER RANGE 1995>2009 -AP8215767- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/4/9/img/47449.jpg)
22 |
HORN SWITCH "PIAGGIO GENUINE PART" COMMON TO THE 50CC APRILIA SCOOTER RANGE 1995>2009 -AP8124209- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/7/img/71937.jpg)
23 |
AP8152270 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
24 |
AP8152268 - VIS More informationQuantity required : 2 |
