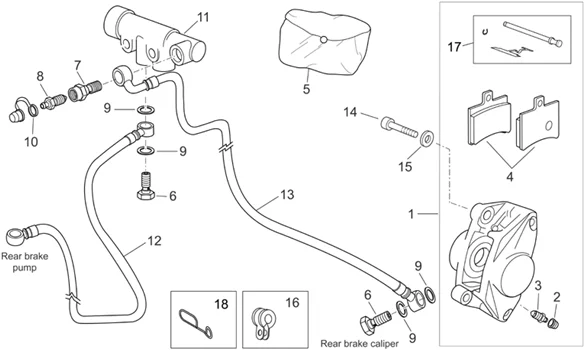

Chassis : 28.27 PINCE FREIN ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/242/Atlantic_500_Sprint_2005-2008_28.27.PNG)
1 |
AP8133581 - PINCE FREIN AR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/7/8/2/img/48782.jpg)
1 |
REAR BRAKE CALIPER "PIAGGIO GENUINE PART" APRILIA 125-250 ATLANTIC -AP8133732- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/4/img/71284.jpg)
2 |
AP8113005 - CAPUCHON RENIFLARD More informationQuantity required : 1 |
||||||
|
2 |
AP8213575 - CAPPUCCIO SPURGO ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/5/img/71285.jpg)
3 |
SCREW - DRAIN SCREW "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER/MAXISCOOTER APRILIA -AP8113006- More informationQuantity required : 1 |
||||||
|
3 |
AP8213574 - SPURGO ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/2/1/img/72221.jpg)
4 |
REAR BRAKE PADS-"PIAGGIO GENUINE PART" APRILIA 125-300 ATLANTIC 2010> (PAIR) -AP8213577- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/2/9/img/71329.jpg)
4 |
REAR BRAKE PADS - "PIAGGIO GENUINE PART" APRILIA 125-250 ATLANTIC, SPORT-CITY, SCARABEO, 125 LEONARDO, SPORT CITY-STREET -AP8113869- More informationQuantity required : 1 |
||||||
|
5 |
498850 - KIT REVISION ETRIER More informationQuantity required : 1 |
||||||
|
5 |
AP8213579 - KIT REVISIONE PINZA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
6 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/0/0/7/img/46007.jpg)
7 |
AP8113762 - VIS PERCEE; More informationQuantity required : 1 |
||||||
|
8 |
AP8113761 - PURGE AIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
9 |
AP8113004 - RONDELLE More informationQuantity required : 4 |
||||||
|
10 |
AP8113230 - CAPUCHON RENIFLARD (20 PCS) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/7/8/7/img/48787.jpg)
11 |
BRAKE VALVE "PIAGGIO GENUINE PART" APRILIA 125-250-400-500 ATLANTIC, SCARABEO (GRIMECA) -AP8133738- More informationQuantity required : 1 |
||||||
|
12 |
AP8133533 - TUYAU FREIN ARRIERE; More informationQuantity required : 1 |
||||||
|
13 |
AP8133950 - TUBO RITARD.PINZA POST. More informationQuantity required : 1 |
||||||
|
13 |
AP8144531 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/7/img/71827.JPG)
14 |
AP8150164 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
15 |
SPRING WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150376- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/4/2/img/71642.jpg)
16 |
AP8132907 - COLLIER; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/2/2/img/72222.jpg)
17 |
REAR BRAKE SPRING KIT "PIAGGIO GENUINE PART" APRILIA 125-250-300 SPORT-CITY, ATLANTIC, SCARABEO -AP8213578- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/3/1/img/71331.jpg)
17 |
AP8113871 - GOUJON+RESSORT PINCE; More informationQuantity required : 1 |
||||||
|
18 |
AP8202159 - GUIDE-CABLE More informationQuantity required : 1 |
