Vehicle Exploded View - APRILIA ATLANTIC 500 Sprint 2005-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

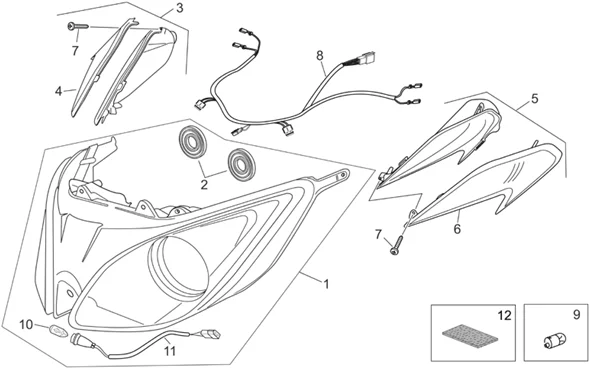

Chassis : 28.28 FEU AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/242/Atlantic_500_Sprint_2005-2008_28.28.PNG)
1 |
854894 - PHARE AVT ATLANTIQUE More informationQuantity required : 1 |
||||||
|
2 |
AP8127442 - COIFFE PHARE; More informationQuantity required : 2 |
||||||
|
3 |
AP8127272 - CLIGNOTANT AV DROITE; More informationQuantity required : 1 |
||||||
|
4 |
AP8127443 - GLACE CLIGN. AV D; More informationQuantity required : 1 |
||||||
|
5 |
AP8127258 - CLIGNOTANT AVANT GAUCHE More informationQuantity required : 1 |
||||||
|
6 |
AP8127444 - GLACE CLIGN. AV G; More informationQuantity required : 1 |
||||||
|
8 |
AP8127248 - CABLAGE FEU AV More informationQuantity required : 1 |
||||||
|
11 |
AP8127488 - CABLES FEU DE POSITION More informationQuantity required : 1 |
||||||
|
12 |
AP8144529 - JOINT More informationQuantity required : 1 |
