Vehicle Exploded View - APRILIA ATLANTIC 500 Sprint 2005-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

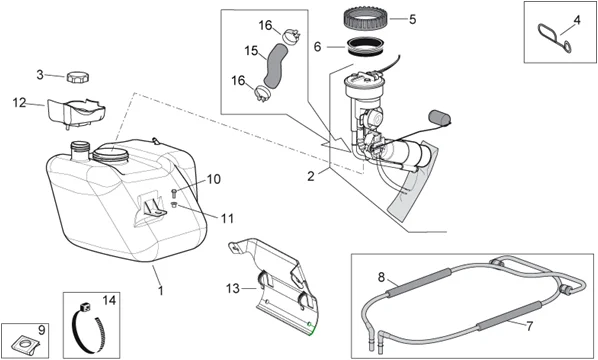

Chassis : 28.20 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/242/Atlantic_500_Sprint_2005-2008_28.20.PNG)
1 |
AP8178848 - SERBATOIO BENZINA More informationQuantity required : 1 |
||||||
|
2 |
641135 - POMPE CARBURANT More informationQuantity required : 1 |
||||||
|
3 |
AP8144782 - TAPPO SERBATOIO BENZINA More informationQuantity required : 1 |
||||||
|
4 |
AP8202159 - GUIDE-CABLE More informationQuantity required : 2 |
||||||
|
5 |
AP8158359 - BAGUE; More informationQuantity required : 1 |
||||||
|
6 |
AP8144422 - JOINT More informationQuantity required : 1 |
||||||
|
7 |
AP8144694 - TUBO MANDATA More informationQuantity required : 1 |
||||||
|
8 |
AP8144695 - TUBO RITORNO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
9 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
10 |
AP8152279 - VIS BRIDE More informationQuantity required : 3 |
||||||
|
11 |
AP8221145 - "DOUILLE EN ""T"" *" More informationQuantity required : 3 |
||||||
|
12 |
AP8144698 - GOMMINO RACCOLTA BENZINA More informationQuantity required : 1 |
||||||
|
13 |
AP8117250 - PROTEZIONE CALORE SERBATOIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
14 |
AP8120416 - COLLIER, NOIR More informationQuantity required : 2 |
||||||
|
15 |
641140 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/7/4/1/img/204741.jpg)
16 |
CM0019026 - COLLIER SERR. TUBE More informationQuantity required : 2 |
||||||
|
16 |
CM0019026 - COLLIER SERR. TUBE More informationQuantity required : 2 |
