Vehicle Exploded View - APRILIA ATLANTIC 125 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

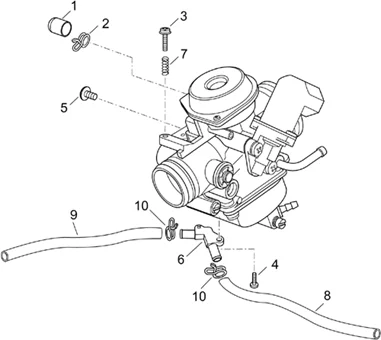

Chassis : 28.26 CARBURATEUR III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/238/Atlantic_125_2003-2006_28.26.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/0/img/69200.jpg)
1 |
AIR INTAKE "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER 125-250 CC -841695- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/7/img/72897.jpg)
2 |
CM002916 - SERRE CABLE (15MM) More informationQuantity required : 1 |
||||||
3 |
826824 - VIS More informationQuantity required : 1 |
||||||
|
4 |
826770 - VIS More informationQuantity required : 2 |
||||||
|
5 |
826826 - VIS More informationQuantity required : 2 |
||||||
|
6 |
828742 - RECHAFFEUR More informationQuantity required : 1 |
||||||
|
6 |
842516 - KIT RECHAUFFEUR More informationQuantity required : 1 |
||||||
|
7 |
826825 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/1/6/img/68716.jpg)
8 |
827921 - TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/0/img/66450.jpg)
9 |
BI-PASS PIPE - FOR CARB HEATING "PIAGGIO GENUINE PARTS" COMMON FOR MAXISCOOTER 125-250CC -434381- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/0/img/72890.jpg)
10 |
COLLIER DE SERRAGE DURITE (7X10) ORIGINE PIAGGIO COMMUN A LA GAMME -CM002903- More informationQuantity required : 2 |
