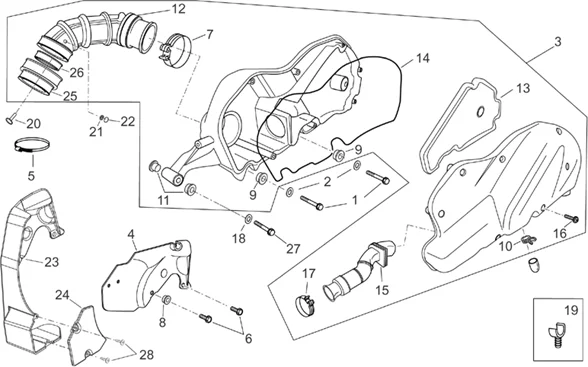

Vehicle Exploded View - APRILIA ATLANTIC 125 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)
Chassis : 28.23 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/238/Atlantic_125_2003-2006_28.23.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/8/img/71838.jpg)
1 |
AP8150202 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
2 |
AP8150015 - RONDELLE More informationQuantity required : 2 |
||||||
3 |
871803 - BOITE FILTRE AIR More informationQuantity required : 1 |
||||||
|
4 |
AP8168515 - PROTECTION; More informationQuantity required : 1 |
||||||
|
5 |
AP8102701 - FASCETTA D.40-60 X 9 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
6 |
AP8152282 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/6/img/66046.JPG)
7 |
260918 - BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
8 |
AP8121032 - DOUILLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/8/img/68888.jpg)
9 |
830056 - BAGUE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/5/img/72895.jpg)
10 |
COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 125-250-300 -CM002910- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/9/img/68889.jpg)
11 |
830057 - BAGUE More informationQuantity required : 2 |
||||||
|
12 |
827939 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/9/7/0/img/156970.jpg)
13 |
AIR FILTER"PIAGGIO GENUINE PART" PREMIUM 125-250-400-500 BEVERLY, X9-EVO, MP3, X10, X7, X-EVO/APRILIA ATLANTIC, SR-MAX, SPORT-CITY/GILERA NEXUS, FUOCO -8292580P- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/3/3/img/68833.jpg)
14 |
GASKET FOR AIR FILTER COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -829259- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/6/img/68856.jpg)
15 |
AIR FILTER INTAKE HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -829543- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/5/img/72885.jpg)
17 |
CM001926 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/7/img/71927.JPG)
18 |
AP8152181 - RONDELLE FER PLATE More informationQuantity required : 1 |
||||||
|
19 |
AP8121882 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
20 |
AP8144638 - RACCORDO MANICOTTO CASSA F. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
21 |
WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/1/img/71181.jpg)
22 |
RUBBER SPACER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8102504- More informationQuantity required : 1 |
||||||
|
23 |
AP8178550 - PARATIA VARIATORE More informationQuantity required : 1 |
||||||
|
24 |
AP8178822 - COPERCHIO PARATIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/8/0/img/69180.jpg)
25 |
841231 - MANCHON More informationQuantity required : 1 |
||||||
|
26 |
841232 - BAGUE ETANCHEITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/5/img/71865.jpg)
27 |
AP8150342 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
28 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 2 |
