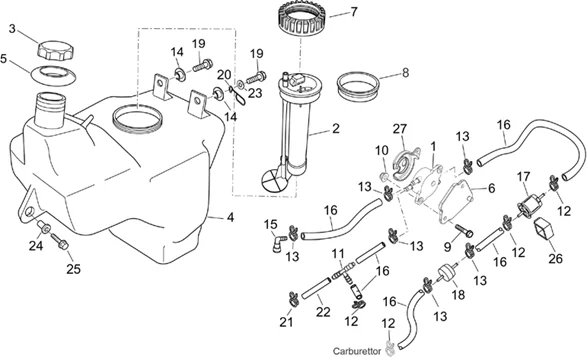

Chassis : 28.21 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/238/Atlantic_125_2003-2006_28.21.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/2/6/img/73126.jpg)
1 |
FUEL PUMP "PIAGGIO GENUINE PART" 50 FLY 4 STROKE 2012>, NRG 2005>, 125 MP3 2007>, X8 2004>, X-EVO 2007>/ 50-125 GILERA RUNNER 2005>/APRILIA 125 ATLANTIC 2003> -CM120903- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/5/6/4/img/38564.jpg)
2 |
FUEL LEVEL SENSOR "PIAGGIO GENUINE PART" "PIAGGIO GENUINE PART" APRILIA 125-250 ATLANTIC -643265- More informationQuantity required : 1 |
||||||
3 |
AP8201757 - BOUCHON ESSENCE More informationQuantity required : 1 |
||||||
|
4 |
AP8168883 - SERBATOIO BENZINA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/8/9/img/45189.jpg)
5 |
FUEL CAP GASKET "PIAGGIO GENUINE PART" APRILIA 125-250-300 ATLANTIC, 125 LEONARDO -AP8102605- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/0/6/5/img/49065.JPG)
6 |
AP8134886 - SUPPORT POMPE ESSENCE; More informationQuantity required : 1 |
||||||
|
7 |
AP8158359 - BAGUE; More informationQuantity required : 1 |
||||||
|
8 |
AP8144422 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
9 |
AP8152280 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
10 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
|
11 |
AP8144303 - "RACCORD EN ""T""" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
12 |
AP8101595 - COLLIER More informationQuantity required : 4 |
||||||
|
13 |
AP8102378 - COLLIER More informationQuantity required : 6 |
||||||
|
14 |
AP8221145 - "DOUILLE EN ""T"" *" More informationQuantity required : 2 |
||||||
|
15 |
AP8121614 - FIXATION; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
16 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -896544- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/2/3/img/71223.jpg)
17 |
FUEL FILTER "PIAGGIO GENUINE PART" 125 SPORT-CITY, MOJITO, SCARABEO, ATLANTIC -AP8104406- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/0/img/71230.jpg)
18 |
ANTI RETURN VALVE (FEEDING SYSTEM) "PIAGGIO GENUINE PART" 125 MP3, X8, X9-EVO, X-EVO/GILERA 125 NEXUS, RUNNER 4 STROKE/APRILIA 125 SPORT-CITY-ONE -AP8104594- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
19 |
AP8152273 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
20 |
AP8202159 - GUIDE-CABLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/8/img/71388.jpg)
21 |
AP8120179 - COLLIER More informationQuantity required : 1 |
||||||
|
22 |
896570 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/6/img/71806.jpg)
23 |
AP8150013 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
24 |
AP8121728 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
25 |
AP8152279 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/9/img/72289.jpg)
26 |
AP8220546 - CAOUTCHOUC SUPPORT RELAIS More informationQuantity required : 1 |
||||||
|
27 |
AP8178823 - COPERCHIO POMPA More informationQuantity required : 1 |
