Vehicle Exploded View - APRILIA ATLANTIC 125 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

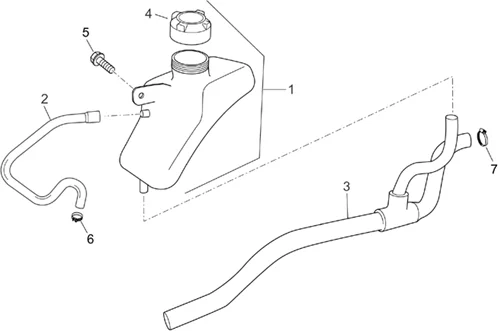

Chassis : 28.20 VASE D'EXPANSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/238/Atlantic_125_2003-2006_28.20.PNG)
1 |
AP8104999 - VASO ESPANSIONE CON SFIATO More informationQuantity required : 1 |
||||||
|
2 |
AP8134812 - TUYAU RENIFLARD RADIATEUR; More informationQuantity required : 1 |
||||||
|
3 |
AP8144498 - TUYAU RADIATEUR-POMPE More informationQuantity required : 1 |
||||||
|
4 |
AP8570122 - TAPPO VASO D'ESPANSIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
5 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/7/img/71397.JPG)
6 |
AP8120446 - COLLIER CLIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/2/img/71152.JPG)
7 |
AP8101573 - COLLIER More informationQuantity required : 1 |
