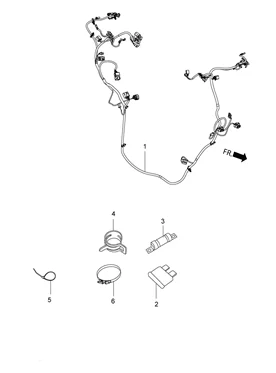

Cadre : 02.28 FAISCEAU DE CÃƑ¢BLES PRINCIPAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/931/Aprilia_SR_150_4T-3V_(EMEA-LATAM)_2018_02.28.png)
1 |
1D002168 - FAISCEAU DE CABLES More informationQuantity required : 1 |
||||||
|
1 |
1D002643 - FAISCEAU DE CABLES More informationQuantity required : 1 |
||||||
|
1 |
1D001407 - FAISCEAU DE CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
2 |
FUSE 15 AMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -290860 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/4/img/66254.jpg)
3 |
292507 - FUSIBLE 10A More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.jpg)
4 |
231590 - CLIPS More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
5 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
6 |
1D001143 - COLLIER More informationQuantity required : 2 |
