Vehicle Exploded View - APRILIA SR 150 Aprilia 4T-3V (EMEA-LATAM) 2018
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

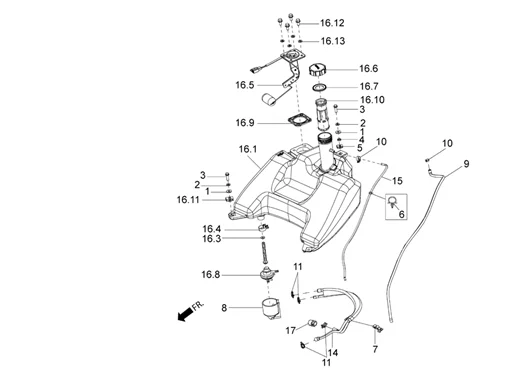

Cadre : 02.12 RESEVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/931/Aprilia_SR_150_4T-3V_(EMEA-LATAM)_2018_02.12.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
1 |
013880 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
2 |
016406 - RONDELLE S01640600 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
3 |
018639 - VIS More informationQuantity required : 3 |
||||||
4 |
1B003715 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
||||||
|
6 |
1B003944 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.jpg)
7 |
231590 - CLIPS More informationQuantity required : 2 |
||||||
|
8 |
576725 - COUVERCLE More informationQuantity required : 1 |
||||||
|
9 |
CM001228 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/4/img/72874.jpg)
10 |
COLLIER (12-22MM) SERRAGE TUBE ORIGINE PIAGGIO COMMUN A LA GAMME -CM001913 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/9/img/72889.jpg)
11 |
HOSE CLAMP "PIAGGIO GENUINE PART" APRILIA /PIAGGIO /GILERA /VESPA -CM002902 More informationQuantity required : 4 |
||||||
|
14 |
CM283503 - TUYAU CARBURANT More informationQuantity required : 1 |
||||||
|
15 |
CM001209 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
16.1 |
1B003194 - RESERVOIR CARBURANT More informationQuantity required : 1 |
||||||
|
16.1 |
675424 - INSERT More informationQuantity required : 1 |
||||||
|
16.3 |
L1200355 - JOINT O RING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
16.4 |
FUEL TAP HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/ MAXISCOOTER -879888 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/5/1/img/152851.jpg)
16.5 |
1D001409 - INDICATEUR NIVEAU CARBURANT More informationQuantity required : 1 |
||||||
|
16.6 |
674640 - BOUCHON DU RESERVOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/6/img/66026.jpg)
16.7 |
FUEL CAP GASKET "PIAGGIO GENUINE PART" COMMON TO MAXISCOOTER RANGE -258160 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/7/3/img/68473.jpg)
16.8 |
FUEL TAP "PIAGGIO GENUINE PART" 50-125 FLY 2005>, LIBERTY 1998>, 50 TYPHOON 2010>, ZIP 2000>, 125 VESPA LX 2005>, VESPA GTS 2007>/APRILIA 50-125 SPORT-CITY 2008> -674594 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/3/6/4/img/109364.jpg)
16.9 |
676200 - JOINT More informationQuantity required : 1 |
||||||
|
16.11 |
CM259204 - PLAQUETTE ELASTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
16.12 |
B016426 - VIS TEF M6X14 More informationQuantity required : 4 |
||||||
|
16.13 |
016406 - RONDELLE S01640600 More informationQuantity required : 4 |
||||||
|
17 |
667156 - COLLIER More informationQuantity required : 1 |
