Vehicle Exploded View - APRILIA SR 150 Aprilia 4T-3V (EMEA-LATAM) 2018
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

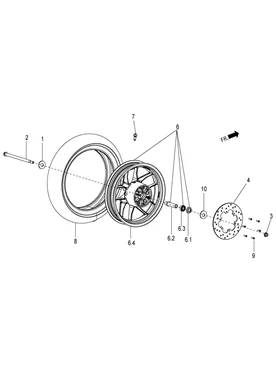

Cadre : 02.19 ROUE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/931/Aprilia_SR_150_4T-3V_(EMEA-LATAM)_2018_02.19.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/8/9/img/68489.jpg)
1 |
709037 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/9/0/4/img/152904.jpg)
2 |
1C002728 - AXE ROUE AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/9/3/img/72993.jpg)
2 |
FRONT WHEEL AXLE "PIAGGIO GENUINE PART" 50-125 FLY 2006> -CM076902- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/7/img/66047.jpg)
3 |
NUT - "PIAGGIO GENUINE PART" -261319 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/9/0/2/img/152902.jpg)
4 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" 50 TYPHOON 2018>/APRILIA 50 SR-MOTARD 2018> -1C003293 More informationQuantity required : 1 |
||||||
4 |
5A000419R - DISQUE FREIN More informationQuantity required : 1 |
||||||
|
6 |
1C004330 - ROUE AVANT CPL More informationQuantity required : 1 |
||||||
|
6 |
1C003290 - ROUE AVANT 14" X 2.75" More informationQuantity required : 1 |
||||||
|
6 |
SP1C002922 - ROUE AV More informationQuantity required : 1 |
||||||
|
6 |
1C002149 - ROUE AV CPL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/0/7/img/127507.jpg)
6.1 |
1C001322 - CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/9/7/img/152897.jpg)
6.2 |
1C002415 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/2/img/68102.jpg)
6.3 |
FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -649910 More informationQuantity required : 2 |
||||||
|
6.4 |
1C003290 - ROUE AVANT 14" X 2.75" More informationQuantity required : 1 |
||||||
|
6.4 |
1C002921 - ROUE AV 14" X 2.75" More informationQuantity required : 1 |
||||||
|
6.4 |
1C002398 - ROUE AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
7 |
270991 - VALVE More informationQuantity required : 1 |
||||||
|
8 |
1C002932 - PNEU 120/70-14" (VEE RUBBER) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
9 |
BRAKE DISC SCREW (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -667152 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/9/9/img/152899.jpg)
10 |
1C002414 - ENTRETOISE More informationQuantity required : 1 |
