Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 0 Ape TM 703 Diesel LCS 422CC 2005-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

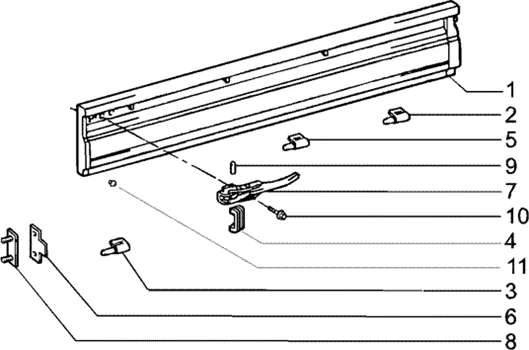

Châssis : T76 RIDELLES BENNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/332/Ape_TM_703_Diesel_LCS_422CC_2005-2012_T76.PNG)
1 |
6447955 - BORD DROIT More informationQuantity required : 1 |
||||||
|
1 |
6447945 - BORD GAUCHE More informationQuantity required : 1 |
||||||
|
2 |
6507187Z01000 - CHARNIERE More informationQuantity required : 2 |
||||||
|
2 |
6507387Z01000 - CHARNIERE More informationQuantity required : 2 |
||||||
|
3 |
6507287Z01000 - CHARNIERE More informationQuantity required : 1 |
||||||
|
3 |
6507487Z01000 - CHARNIERE More informationQuantity required : 1 |
||||||
|
4 |
6614887Z01000 - PROTECTION More informationQuantity required : 2 |
||||||
|
5 |
6611287Z01000 - CHARNIERE More informationQuantity required : 8 |
||||||
|
6 |
565741 - GANCIO ANTER.A More informationQuantity required : 2 |
||||||
|
7 |
6610187Z01000 - SERRURE More informationQuantity required : 2 |
||||||
|
8 |
565740 - PLAQUE More informationQuantity required : 2 |
||||||
|
9 |
127046 - TAMPON More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/8/img/151198.jpg)
10 |
CM287314 - BOULON More informationQuantity required : 2 |
||||||
|
11 |
6614687Z01000 - TAMPON More informationQuantity required : 2 |
