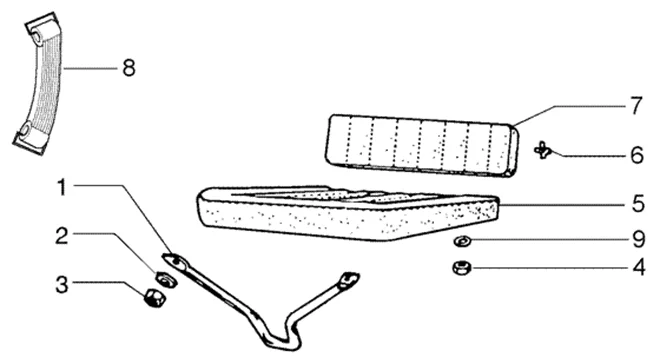

Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 0 Ape TM 703 Diesel LCS 422CC 2005-2012 PIAGGIO VU

Châssis : T22 SIEGE
Siege
Search
21229209 - TUYAU

1
P2R reference P2R reference 119899
Maker reference Maker reference 21229209

21229209 - TUYAU

More information

Quantity required : 1
WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

2
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

More information

Quantity required : 2
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

3
P2R reference P2R reference 65463
Maker reference Maker reference 0201085

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

More information

Quantity required : 2
241279 - ECROU

4
P2R reference P2R reference 111725
Maker reference Maker reference 241279

241279 - ECROU

More information

Quantity required : 2
614081 - SIEGE

5
P2R reference P2R reference 122276
Maker reference Maker reference 614081

614081 - SIEGE

More information

Quantity required : 1
614586 - SIEGE

5
P2R reference P2R reference 123375
Maker reference Maker reference 614586

614586 - SIEGE

More information

Quantity required : 1
194721 - ATTACHE

6
P2R reference P2R reference 111240
Maker reference Maker reference 194721

194721 - ATTACHE

More information

Quantity required : 3
565639 - DOSSIER SIEGE

7
P2R reference P2R reference 120490
Maker reference Maker reference 565639

565639 - DOSSIER SIEGE

More information

Quantity required : 1
214801 - SANGLE

8
P2R reference P2R reference 115470
Maker reference Maker reference 214801

214801 - SANGLE

More information

Quantity required : 1
006968 - RONDELLE

9
P2R reference P2R reference 63839
Maker reference Maker reference 0069685

006968 - RONDELLE

More information

Quantity required : 2
