Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 0 Ape TM 703 Diesel LCS 422CC 2005-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

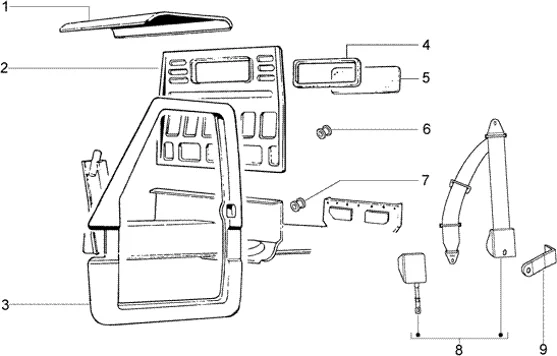

Châssis : T14 PIECES COMPOSANT LE CHÂSSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/332/image-2299.jpg)
1 |
2416435 - PAVILLON CABINE More informationQuantity required : 1 |
||||||
|
2 |
1949485 - PANNEAU AR More informationQuantity required : 1 |
||||||
|
3 |
2416625 - LOGEMENT PORTE G More informationQuantity required : 1 |
||||||
|
3 |
6147345 - LOGEMENT PORTE D More informationQuantity required : 1 |
||||||
|
4 |
212493 - JOINT GLACE AR More informationQuantity required : 1 |
||||||
|
5 |
212492 - GLACE AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/7/img/65787.jpg)
6 |
178610 - PASSE CABLES More informationQuantity required : 2 |
||||||
|
7 |
105392 - PASSE CABLE More informationQuantity required : 1 |
||||||
|
8 |
56534R - CEINTURE DE SECURITE More informationQuantity required : 1 |
||||||
|
9 |
230660 - SUPPORT CENTURE DE SECURITE T1 More informationQuantity required : 1 |
||||||
|
9 |
230661 - SUPPORT CENTURE DE SECURITE T1 More informationQuantity required : 1 |
