Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 0 Ape TM 703 Diesel LCS 422CC 2005-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

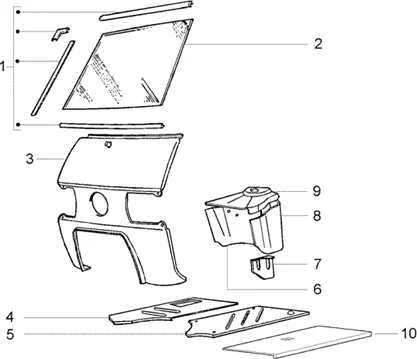

Châssis : T13 PIECES COMPOSANT LE CHÂSSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/332/Ape_TM_703_Diesel_LCS_422CC_2005-2012_T13.PNG)
1 |
154631 - SERIE PROFIL P/BRISE More informationQuantity required : 1 |
||||||
|
1 |
2416435 - PAVILLON CABINE More informationQuantity required : 1 |
||||||
|
2 |
1949485 - PANNEAU AR More informationQuantity required : 1 |
||||||
|
2 |
WIND SHIELD "PIAGGIO GENUINE PART" APE 703 1997> -1E001291- More informationQuantity required : 1 |
||||||
|
3 |
6147345 - LOGEMENT PORTE D More informationQuantity required : 1 |
||||||
|
3 |
2416625 - LOGEMENT PORTE G More informationQuantity required : 1 |
||||||
|
3 |
5687705 - TABLIER More informationQuantity required : 1 |
||||||
|
3 |
5687695 - FACE AV More informationQuantity required : 1 |
||||||
|
4 |
212493 - JOINT GLACE AR More informationQuantity required : 1 |
||||||
|
4 |
6151795 - PANNEAU More informationQuantity required : 1 |
||||||
|
5 |
2144415 - PLANCHER More informationQuantity required : 1 |
||||||
|
5 |
212492 - GLACE AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/7/img/65787.jpg)
6 |
178610 - PASSE CABLES More informationQuantity required : 2 |
||||||
|
6 |
1980415 - PARTIE D More informationQuantity required : 1 |
||||||
|
7 |
105392 - PASSE CABLE More informationQuantity required : 1 |
||||||
|
7 |
1980395 - RENFORT More informationQuantity required : 1 |
||||||
|
8 |
1883616 - VANO RUOTA PAR More informationQuantity required : 1 |
||||||
|
8 |
56534R - CEINTURE DE SECURITE More informationQuantity required : 1 |
||||||
|
9 |
1980387 - LOGEMENT ROUE More informationQuantity required : 1 |
||||||
|
9 |
230660 - SUPPORT CENTURE DE SECURITE T1 More informationQuantity required : 1 |
||||||
|
9 |
230661 - SUPPORT CENTURE DE SECURITE T1 More informationQuantity required : 1 |
