Vehicle Exploded View - APRILIA AF1 FUTURA 125 1990-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

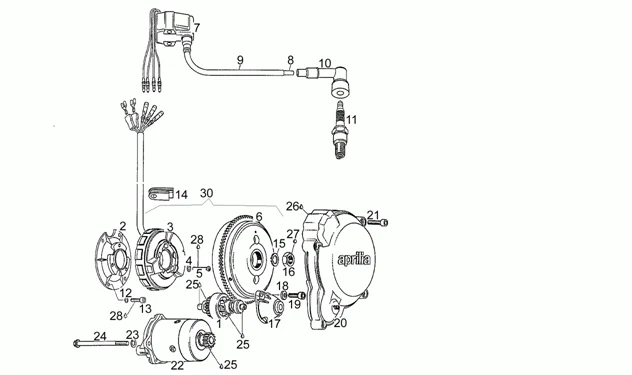

Moteur : 9 VOLANT MAGNÉTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/232/AF1_Futura_125_1990-1992_9.PNG)
4 |
AP0927571 - RONDELLE More informationQuantity required : 3 |
||||||
|
6 |
AP0293367 - ROTOR AF1/PEG./RED ROSE More informationQuantity required : 1 |
||||||
|
7 |
AP0265987 - BOBINE More informationQuantity required : 1 |
||||||
|
8 |
AP0964180 - FIL DE BOBINE More informationQuantity required : 1 |
||||||
|
10 |
AP0866708 - PIPE BOUGIE NOIRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/0/0/img/71100.jpg)
11 |
SPARK PLUG NGK BR10EG "PIAGGIO GENUINE PART" GILERA 50-125 RS, RX, SX -AP0297830- More informationQuantity required : 1 |
||||||
|
12 |
AP0945750 - RONDELLE FENDUE More informationQuantity required : 4 |
||||||
|
14 |
AP0260840 - CAOUTCHOUC CACHE-FIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/6/1/7/img/44617.jpg)
15 |
AP0945754 - RONDELLE FENDUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/4/3/8/img/44438.jpg)
16 |
NUT - FOR CRANKSHAFT (12X1) "PIAGGIO GENUINE PART" APRILIA 125 AF1, PEGASO, RS 1998>1998 -AP0642051- More informationQuantity required : 1 |
||||||
|
17 |
AP0210340 - COUVERCLE DEMARREUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/7/4/9/img/43749.jpg)
19 |
AP0241930 - VIS More informationQuantity required : 2 |
||||||
|
20 |
AP0211050 - COUVERCLE VOLANT GRIS More informationQuantity required : 1 |
||||||
|
21 |
AP0840861 - VIS More informationQuantity required : 4 |
||||||
|
22 |
AP0293685 - DEMARREUR RS 125 More informationQuantity required : 1 |
||||||
|
23 |
AP0945751 - RONDELLE FENDUE More informationQuantity required : 2 |
||||||
|
25 |
AP0897161 - MOLYKOTE More informationQuantity required : 1 |
||||||
|
26 |
AP0297385 - SILASTIC More informationQuantity required : 1 |
||||||
|
27 |
AP0899788 - LOCTITE VERTE More informationQuantity required : 1 |
||||||
|
28 |
AP0899785 - LOCTITE VIOLET More informationQuantity required : 1 |
